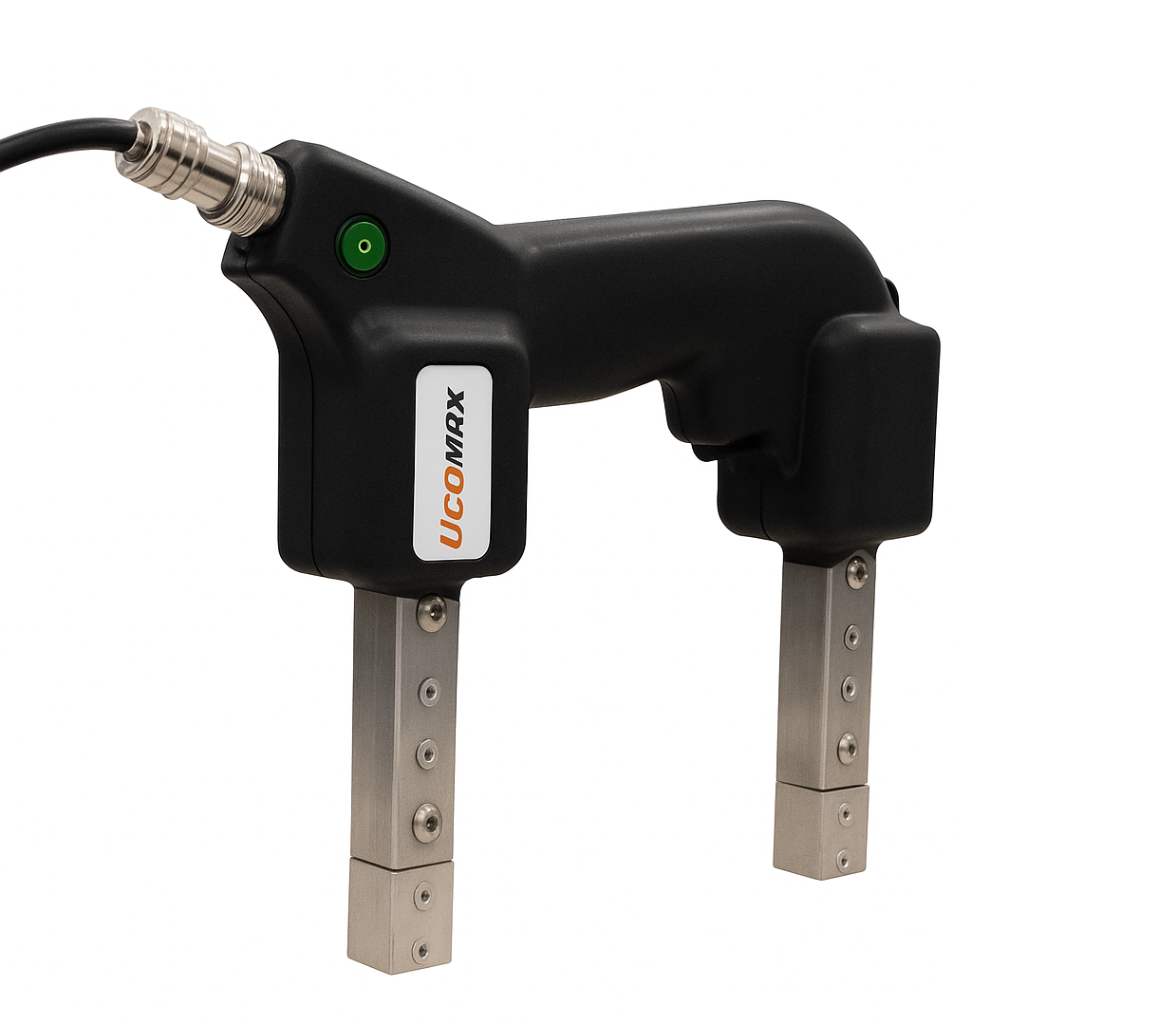

The AC Electromagnetic Yoke is a vital tool for conducting non-destructive testing, specifically designed for magnetic particle inspection (MPI). It uses alternating current to generate a magnetic field, which is ideal for detecting surface and subsurface flaws in ferromagnetic materials. The yoke is lightweight, compact, and portable, making it easy for technicians to carry out inspections in various industrial settings such as pipelines, machinery, and metal structures.
Features:
| Magnetic Field Type | AC (Alternating Current) |
| Field Strength | Adjustable magnetic intensity for various tests |
| Power Supply | AC Power (110V - 230V) |
| Input Supply | 230 VAC, 50/60 Hz |
| Max. Line Current Draw | 2.5 Amps |
| Duty Cycle | 50% Duty cycle (2 MIN ON / 2 MIN OFF) |
| Pole Distance | 50 - 280 mm |
| Cord Length | 2 Mtrs |
| Magnetic Field Range | Up to 100 mm (depending on material and settings) |
| Product Weight | 3 kg |
| Material | High-strength steel and durable plastic casing |
| Handle Type | Ergonomic, anti-slip grip |
| Application | Non-destructive testing (NDT), Magnetic Particle Inspection (MPI) |
| Safety Features | Overload protection, heat dissipation system |
| Certifications | CE Certified, ISO Certified |
