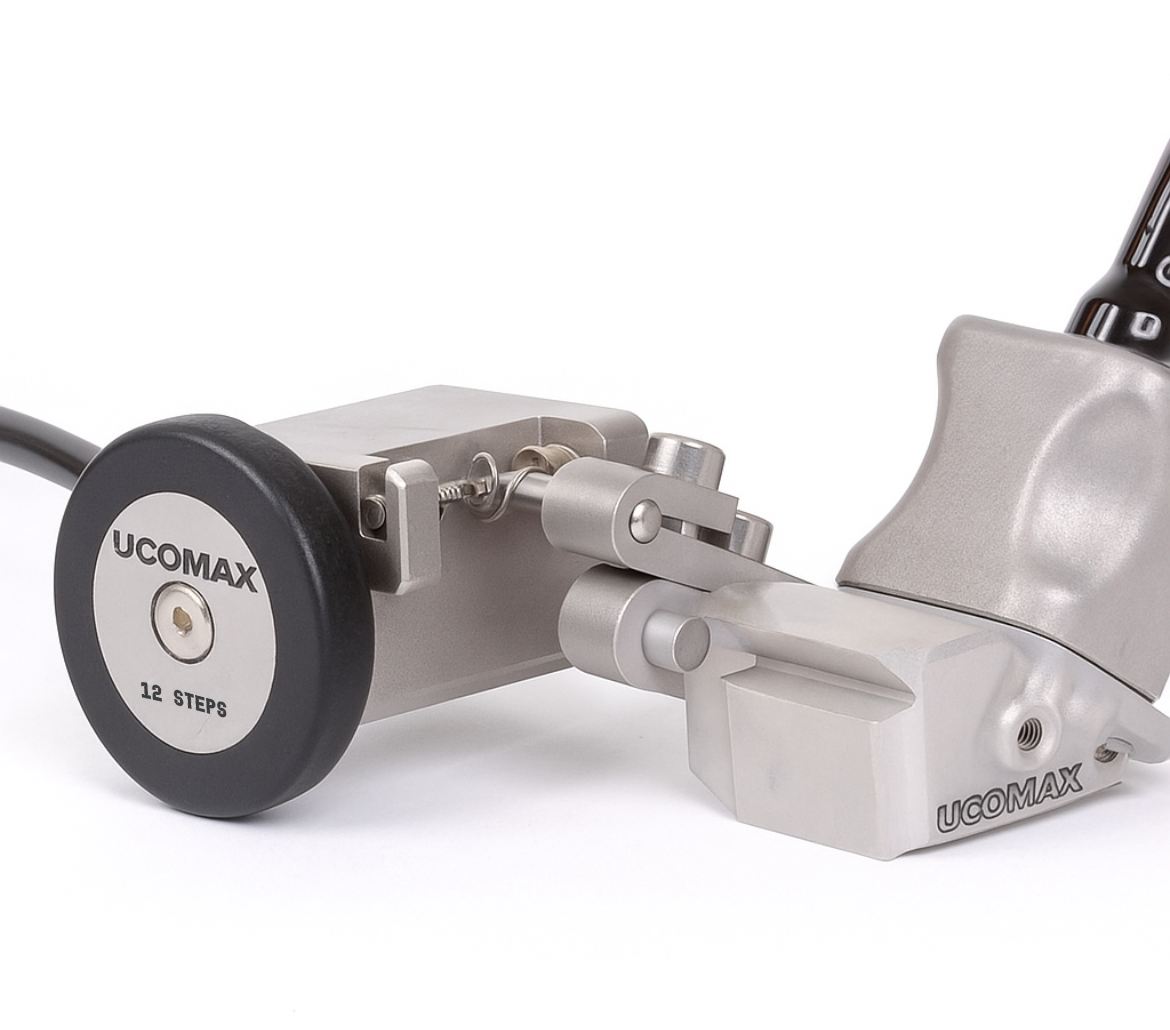

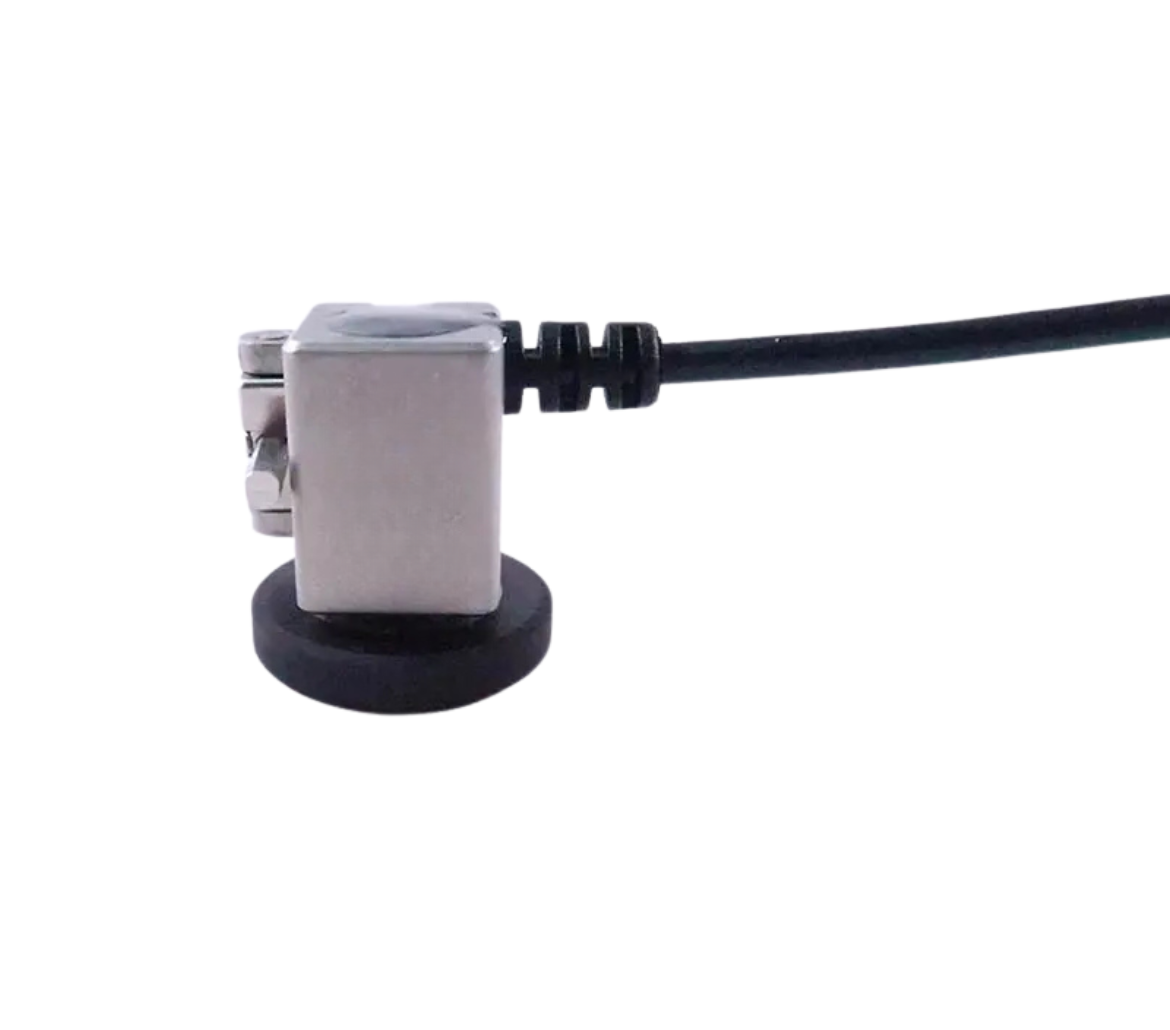

Compact Design: The mini wheel encoder features a small and lightweight design, making it ideal for tight spaces and confined environments, providing easy handling during ultrasonic inspections.
High-Precision Tracking: Equipped with a high-resolution encoder, this mini wheel encoder ensures precise and accurate position tracking during the inspection process for reliable, repeatable data collection.
Smooth Movement: The mini wheel design ensures smooth and consistent motion along the surface, minimizing friction and preventing damage to the pipe or surface being tested.
Versatile Compatibility: Compatible with a variety of ultrasonic testing systems, this mini wheel encoder can be seamlessly integrated with existing equipment for enhanced inspection accuracy and efficiency.
The Mini Wheel Encoder for Ultrasonic Testing is an essential tool for enhancing the accuracy and precision of ultrasonic inspections. Its compact and lightweight design makes it ideal for use in tight spaces and areas with limited accessibility, while its high-resolution encoder ensures precise position tracking during the testing process. Durable construction, smooth movement, and easy integration with existing testing systems make this encoder a reliable and cost-effective solution for a wide range of industrial and commercial applications.
Whether you're performing routine inspections of piping systems, welds, or metal components, the mini wheel encoder guarantees accurate data capture and ensures that your ultrasonic testing remains efficient and reliable.
| SpecificationDetails | |
| Encoder Type | Optical or Magnetic Encoder |
| Wheel Material | High-grade rubber or polyurethane |
| Resolution | 1000-2000 PPR (Pulses Per Revolution) |
| Mounting Type | Flexible mounting for easy installation |
| Dimensions (LxWxH) | 50mm x 50mm x 30mm |
| Weight | 0.3 kg |
| Operating Temperature | -10°C to +60°C |
| Interface | Compatible with most UT systems (USB, Ethernet) |
| Power Supply | Powered via UT system (12-24 VDC) |
| Durability | Corrosion-resistant, industrial-grade materials |
| Wheel Diameter | 30 mm |
| Speed Range | 0.5 m/s to 2 m/s |
| Application | Small and medium diameter pipes, welds, and components |
| Certifications | CE, ISO Certified |
