Observation Head: Trinocular, Sidentopf type, inclined at 30°, rotatable at 360°, with a vertical focusable phototube for micro photography.
Eyepiece: Extra-wide field 10X (anti-fungal treated) with a field of view of 22mm.
Objectives: Infinity corrected, anti-fungal treated, with magnifications of 5X, 10X, 20X, 50X, and 100X (dry).
Mechanical Body: Co-axial focusing control, pre-focusing lever, and motorized mechanical stage (150mm x 150mm) with auto-focusing capability.
Illumination: 5W LED with adjustable Koehler illumination and oblique device.
Standard Accessories: LED bulb, dust cover, blue filter, guarantee card, operating manual.

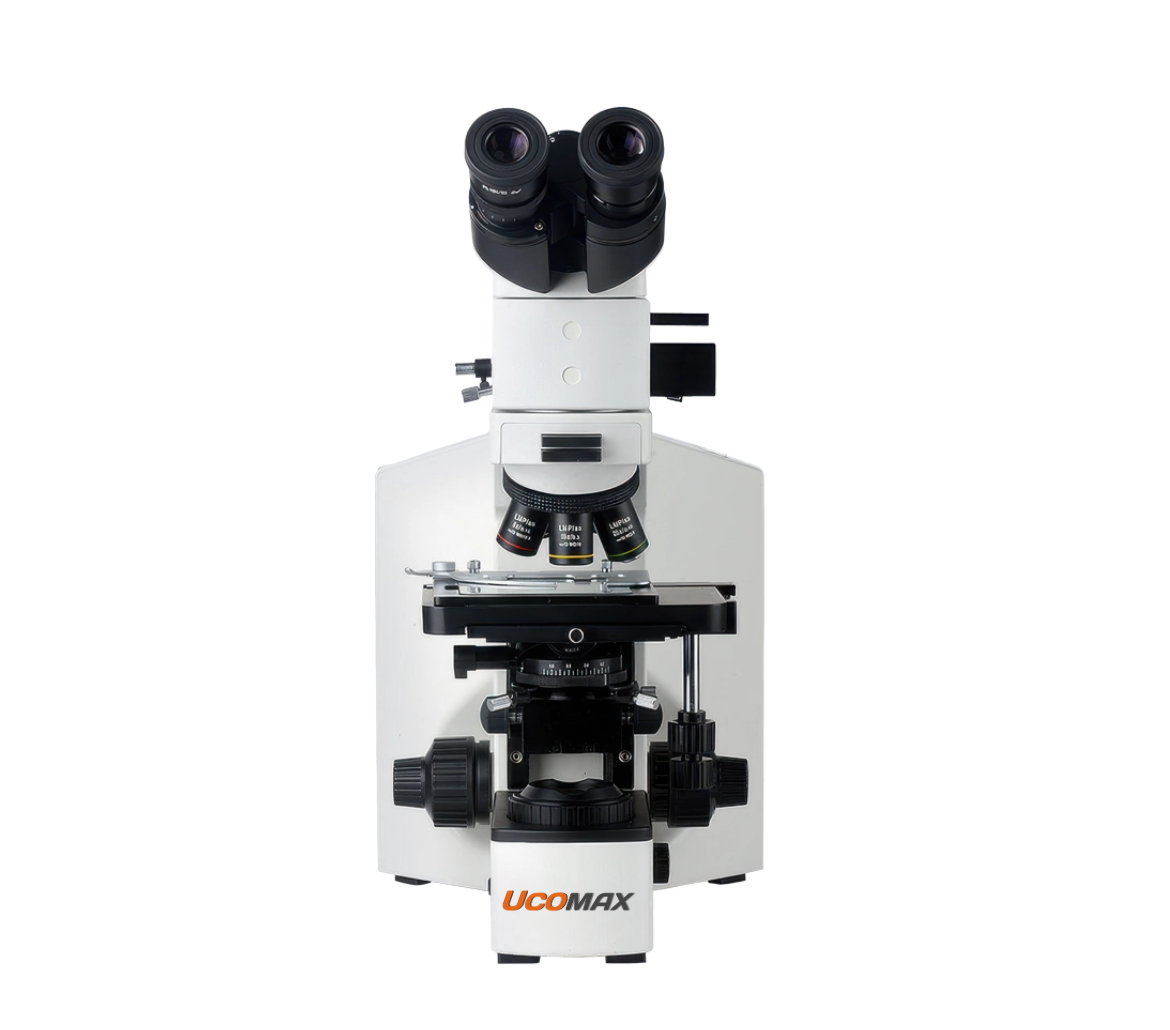

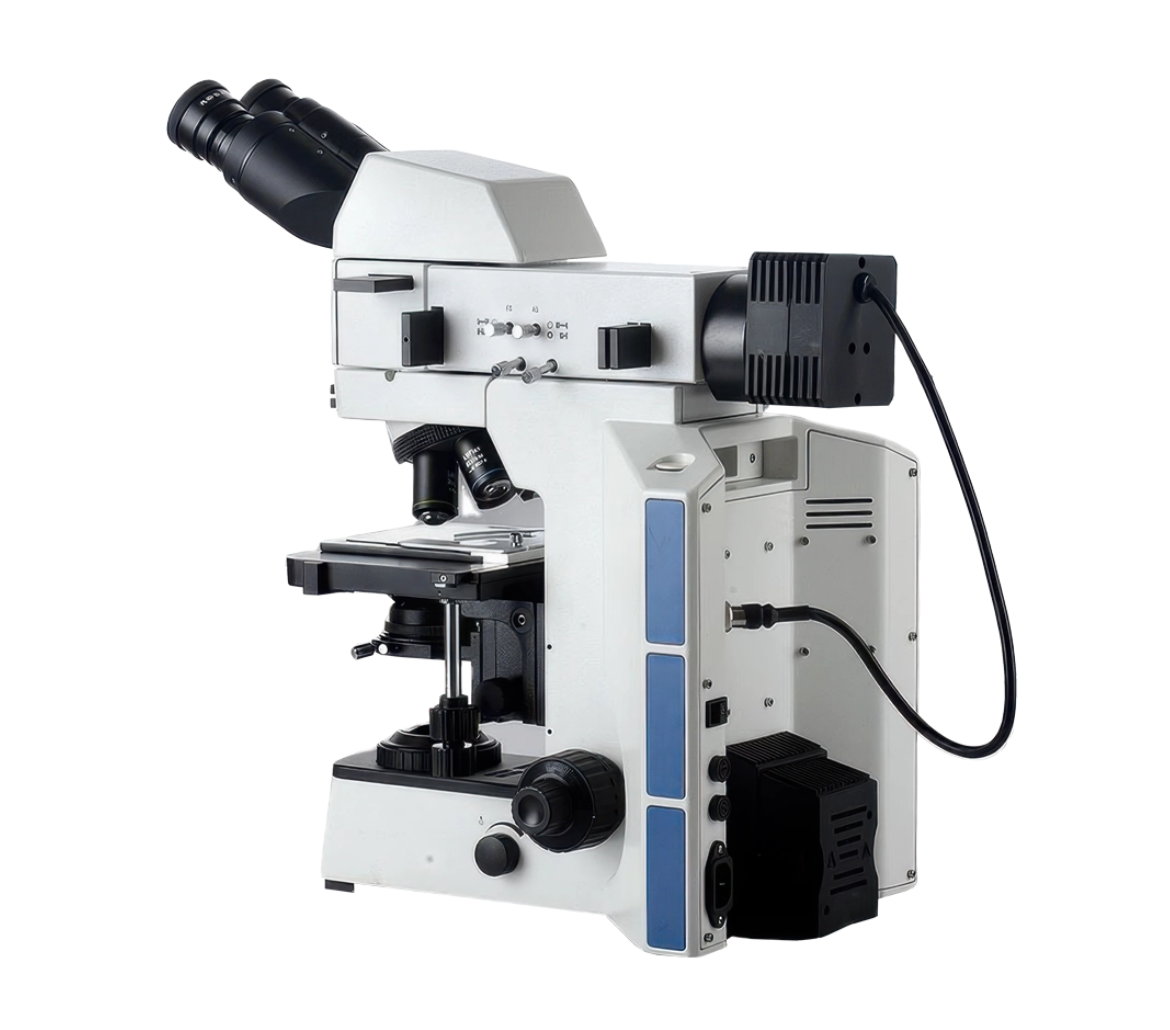

Metscope Prime is a high-performance metallurgical microscope designed for precise metallurgical analysis, industrial inspections, and advanced material research. It combines a robust optical system, ergonomic design, and convenient motorized features — making it ideal for professional laboratories and quality control environments.
Key Highlights:
| Observation Head | Siedentopf trinocular head, 30° inclined, 360° rotatable |
| Vertical focusable phototube for micro-photography | |
| Diopter adjustment ±5, interpupillary distance 50–75 mm | |
| Eyepieces | Extra wide field 10X (paired), F.O.V. 22 mm, ocular dia 30 mm |
| Objectives | LWD Plan Achromatic, Infinity Corrected, Anti-fungal treated |
| 5X, 10X, 20X, 50X (S.L.), 100X (Dry) | |
| Sub-Stage Condenser | Abbe condenser, N.A. 0.9, swing-out front lens, filter holder, iris diaphragm |
| Illumination | Reflected illumination, 5W LED warm light, Koehler illumination, oblique device, center-adjustable field & aperture diaphragm |
| Mechanical Body | Co-axial focusing with large knob, pre-focusing lever, tension adjustment ring |
| Reverse angle quintuple nosepiece on ball bearing, slot for polarizer & DIC attachments | |
| Rotatable, rackless motorized mechanical stage, 150 mm x 150 mm | |
| XY Stage Travel: 100 mm x 100 mm (motorized) | |
| Focusing Stage: Motorized with autofocusing algorithm | |
| Focusing Stage Travel: 25 mm | |
| Standard Accessories | 5W LED bulb, blue filter, dust cover, guarantee card, operating manual, styrofoam molded pack |
