Smart Measurement & Drawing: Draw and edit multiple shapes on-screen; screen printing for special irregular parts; unlimited graphic layers.
High Accuracy: Measurement accuracy within 3 microns; repeatability within 5 microns.
Full HD Display: 60 fps, HDMI output, 1920×1080 resolution with real-time optical & total magnification display.
Flexible Measurement Tools: Supports measurement of points, lines, circles, angles, polygons, center distances, and more.
SMART MEASURING
The measuring accuracy of the system can reach within 3 microns, and the repeated measuring accuracy is also within 5 microns. Support point, line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon. ect measuring. Measurement data can be saved with picture or Excel. Numerical units can be freely selected (mm, UN, inch, mil)
Gauge and crosshair Built-in Angle gauge screen printing and crosshair. Can add any angle. Adjust Angle freely. Can Move the center of angle gauge.

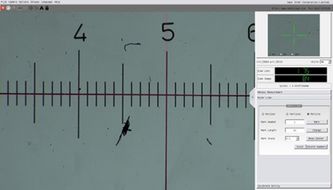

Ruler line. Zoom in or zoom out with magnification. Like put a real ruler on display.
APPLICATION
VisionEdge Plus Smart Measuring Microscope is widely used in industrial material, semi-conductor, integrated circuit board, electronics inspection area, agriculture research, educational demonstration and so on
PRODUCT DETAILS

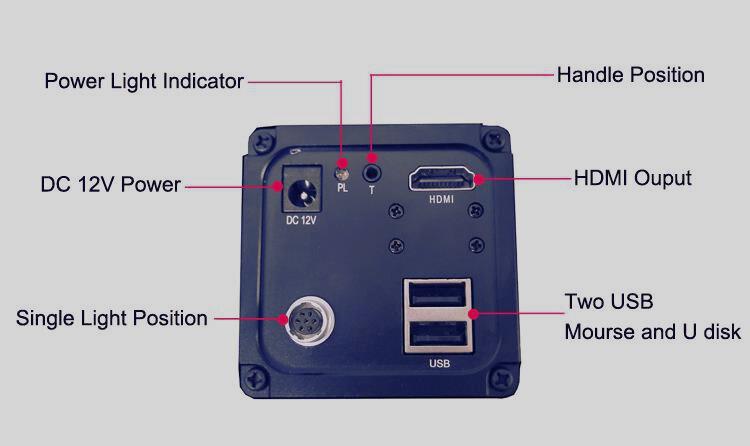

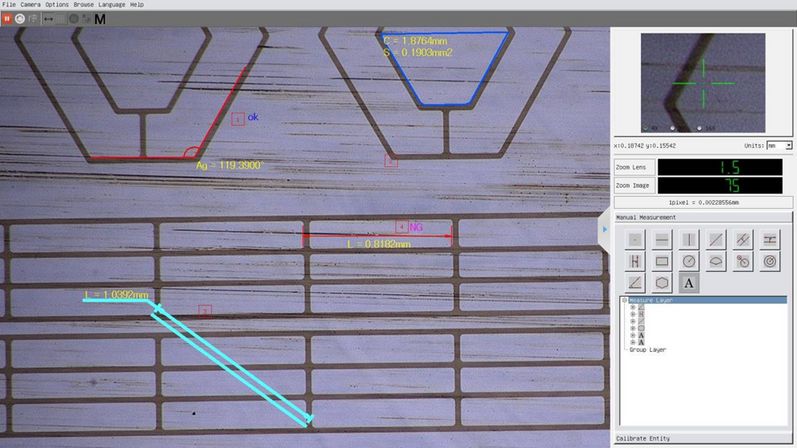

OPERATION WINDOWS

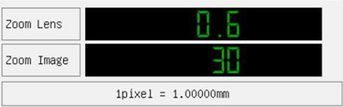

Real time display zoom optical magnification and total magnification. Real-time monitoring of magnification changes and automatic switching of the corresponding calibration value for measurement.
| Optical System | Parallel infinite optical system |
| Magnification | 0.3–2.5X or 0.6–5.0X optical zoom, real-time display of optical & total magnification |
| Display | 60 fps full HD HDMI output, 1920×1080 high resolution |
| Software | Built-in smart measuring software |
| Measurement Accuracy | Within 3 microns, repeat accuracy within 5 microns |
| Measurement Functions | Points, lines, circles, fan shapes, concentric circles, center distance, angles, arbitrary polygons; automatic edge tracing |
| Data Storage | Measurement data saved as images (BMP/JPG) or Excel files |
| Drawing Function | Screen printing drawing for special irregular parts; multi-layer graphic groups; secondary editing supported |
| Operation | Real-time zoom monitoring; auto calibration value switching |
| Light Sources | 12V 5W ring LED, bar LED, 3W coaxial LED with or without polarizer, polarized ring LED |
| Stand Options | Quadrate column stand, coarse & fine focus stand, transmitted light stand; optional X-Y stage with 360° rotatable surface |
| Accessories | X-Y stage, stands, ring/bar/coaxial lights, specimen holders |
