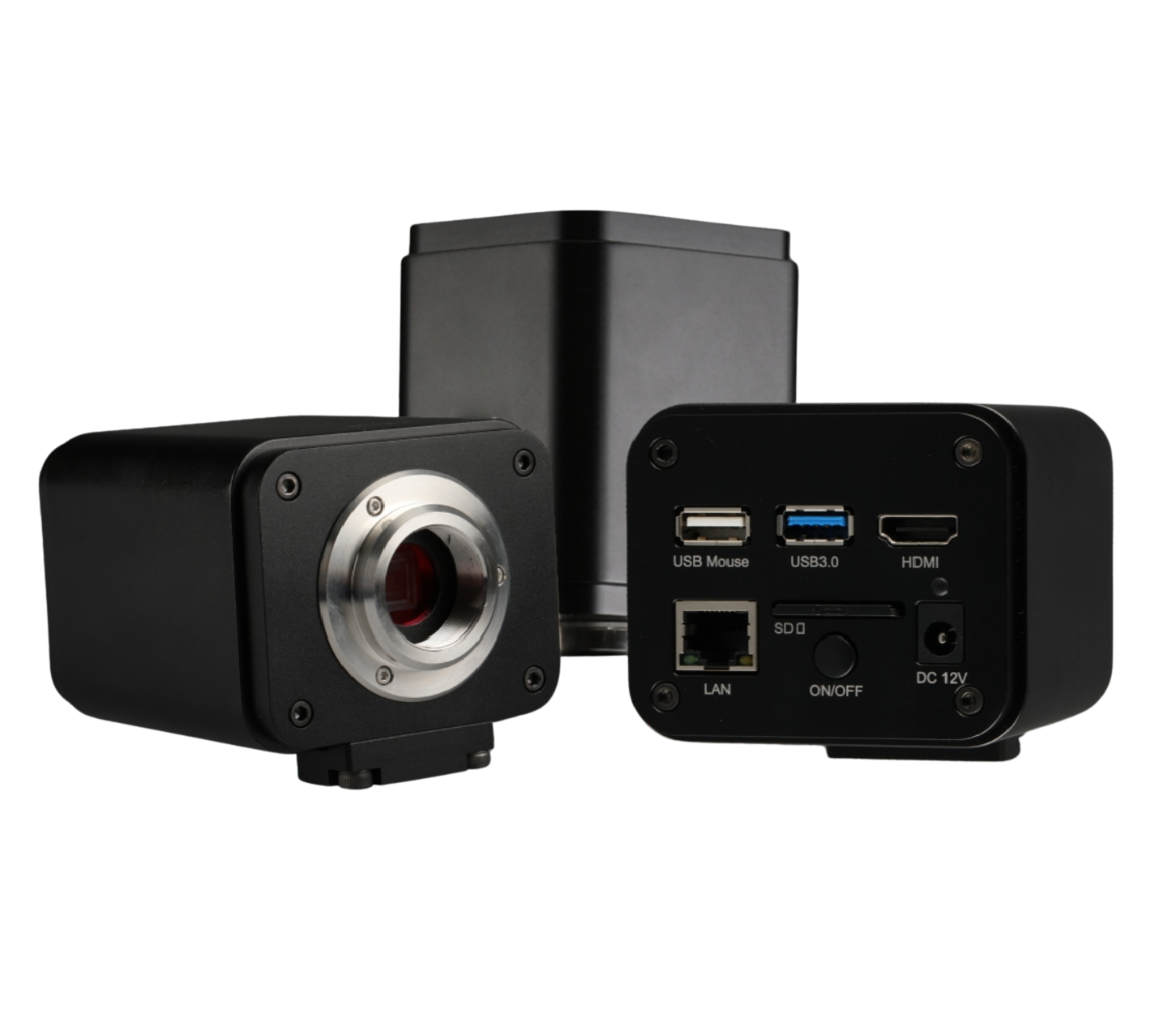

DIGICAM 4K (USB 3.0 + HDMi) - Main View
DIGICAM 4K (USB 3.0 + HDMi) - Image1
DIGICAM 4K (USB 3.0 + HDMi) - Image2
DIGICAM 4K (USB 3.0 + HDMi) - Image3

DIGICAM 4K (USB 3.0 + HDMi)

    IMAGE SENSOR 4K/SONY IMX334(C), COLOR

    CHIP SIZE 1/1.8"(7.68MM X 4.32MM) FULL HD CMOS

    RESOLUTION 3840X 2160

    PIXEL SIZE 2 MICRONS X 2 MICRONS

    OUTPUT HDMI, USB 3.0, SD CARD AND WIFI, ETHERNET(GE)

Download PDF

DIGICAM 4K (USB 3.0 + HDMi)

The DIGICAM 4K is a multi-mode microscope camera that delivers ultra-high-definition 4K video at 60 FPS. Featuring a Sony Exmor CMOS sensor with high sensitivity and advanced noise reduction, it ensures clear, sharp imaging whether used with an HDMI monitor or connected to a PC. Hardware 3D denoising, sharpness, and tone mapping functions help deliver exceptional image and video quality every time.

Key Highlights:

  1. 4K Sony IMX334(C) CMOS Color Sensor
  2. High sensitivity with RGB primary color mosaic filters
  3. Standalone recording with HDMI monitor or TV
  4. Live streaming to PC via Gigabit Ethernet (GE)
  5. USB 3.0, HDMI, SD Card, Wi-Fi, and Ethernet outputs
  6. One-button hi-resolution imaging
  7. Hardware 3D denoising and tone mapping
  8. On-screen display menu for easy control



Image Sensor4K / Sony IMX334(C), Color
Chip Size1/1.8" (7.68 mm × 4.32 mm) Full HD CMOS
Resolution3840 × 2160
Pixel Size2 µm × 2 µm
OutputHDMI, USB 3.0, SD Card, Wi-Fi, Ethernet (GE)
Framerate60 FPS at 3840×2160 (HDMI) / 30 FPS (Wi-Fi, GE)
Memory CardSupports TF Card (Max 32 GB)
Snap FormatTIFF / JPG
Video FormatAVI / MP4
ExposureAuto / Manual (0.1 ms ~ 1000 ms)
White BalanceAuto / Manual
Cross LineHorizontal 4 Lines, Vertical 4 Lines Available
Freeze / UnfreezeAvailable
Cross Line Move/ColorAvailable
High Dynamic RangeSupported
Digital Noise ReductionSupported
Camera MountC or CS Mount (Reduction Lens: 0.37×, 0.5×, 0.7×, 1×)
Power SupplyDC 12V
Light Frequency50 Hz or 60 Hz
OSDOn-Screen Display Menu
Working Temperature0–50 °C
Camera Size98.3 mm × 65 mm × 78 mm
Weight0.47 kg
Wireless ConnectivityMobile connection via Dewinter App
