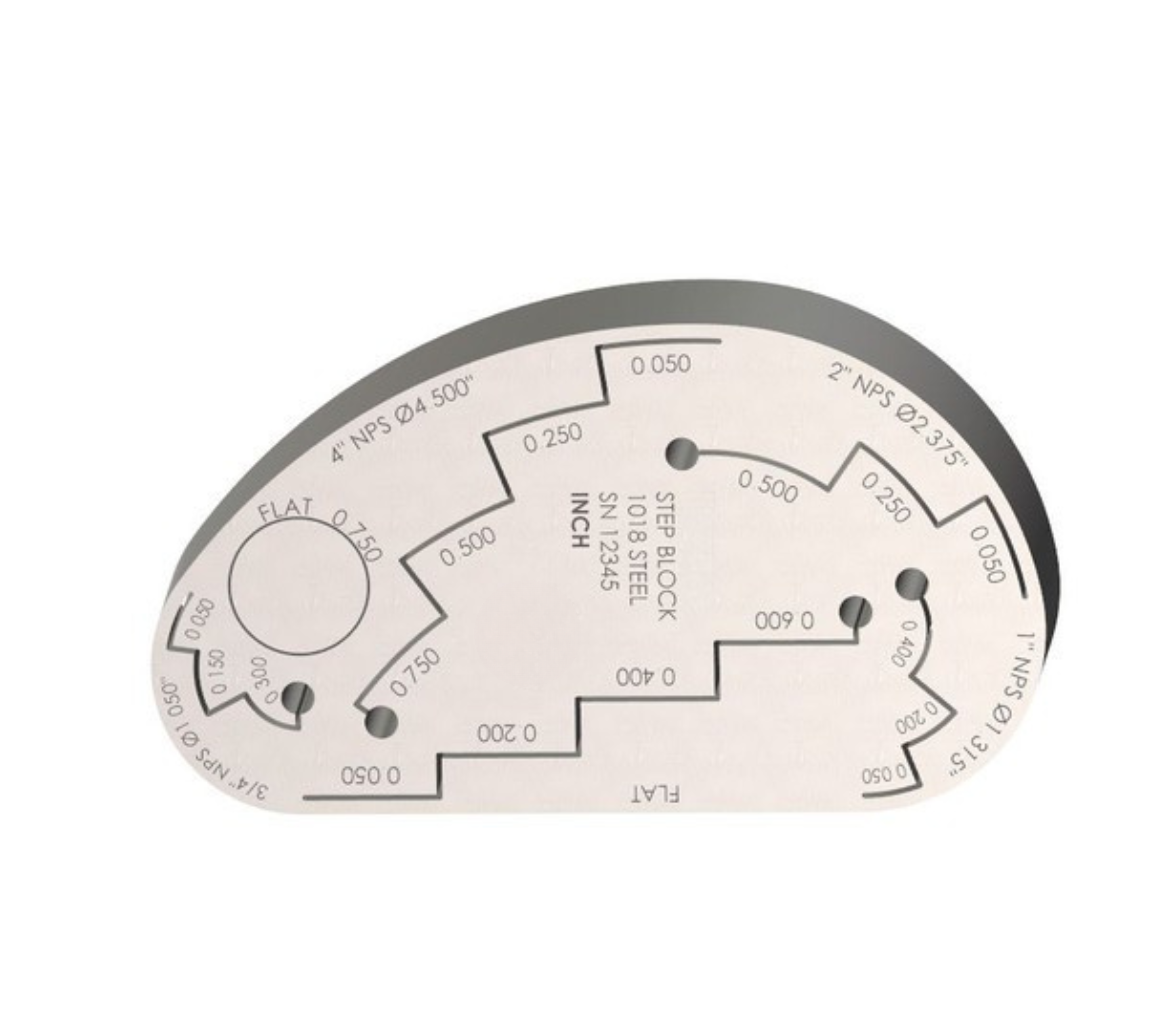

The UCOMAX WCVD Thickness Calibration Block (Wide Coverage Multiple Diameter) is purpose-built for efficient ultrasonic thickness calibration across a wide range of pipe diameters and wall thicknesses. This block features multiple narrow slots precisely cut completely through the block, creating clear, repeatable calibration points at different distances from the OD. Each distance represents a unique wall thickness, allowing inspectors to cover multiple standard pipe schedules with just one block.
Wide Coverage: Calibrates multiple wall thicknesses for various pipe diameters in a single block.
Clear Markings: Engraved pipe diameters, thickness values, alloy, and unique S/N for easy traceability.
Practical Design: Narrow through-slots provide accurate, repeatable calibration points.
| Block Type | WCVD Thickness Calibration Block |
| Design Feature | Narrow slots cut through for multiple thickness points |
| Markings | Pipe diameters, wall thickness values, alloy, unique S/N |
| Application | Thickness calibration for piping inspections |
| Traceability | Block tied to certification with engraved serial no. |
No technical specifications available for this product.
