Stereo Promet

    Wide Magnification Range: The Stereo Promet offers a magnification range of 8x to 80x, providing flexible zoom capabilities for detailed inspection of samples at various scales.

    Superior Optical Clarity: Featuring high-definition optics, the Stereo Promet provides exceptional image clarity and sharpness, allowing users to observe fine details with precision.

    Versatile Illumination System: The Stereo Promet comes with an adjustable LED illumination system for both transmitted and reflected light, ensuring optimal lighting for a variety of sample types.

Download PDF

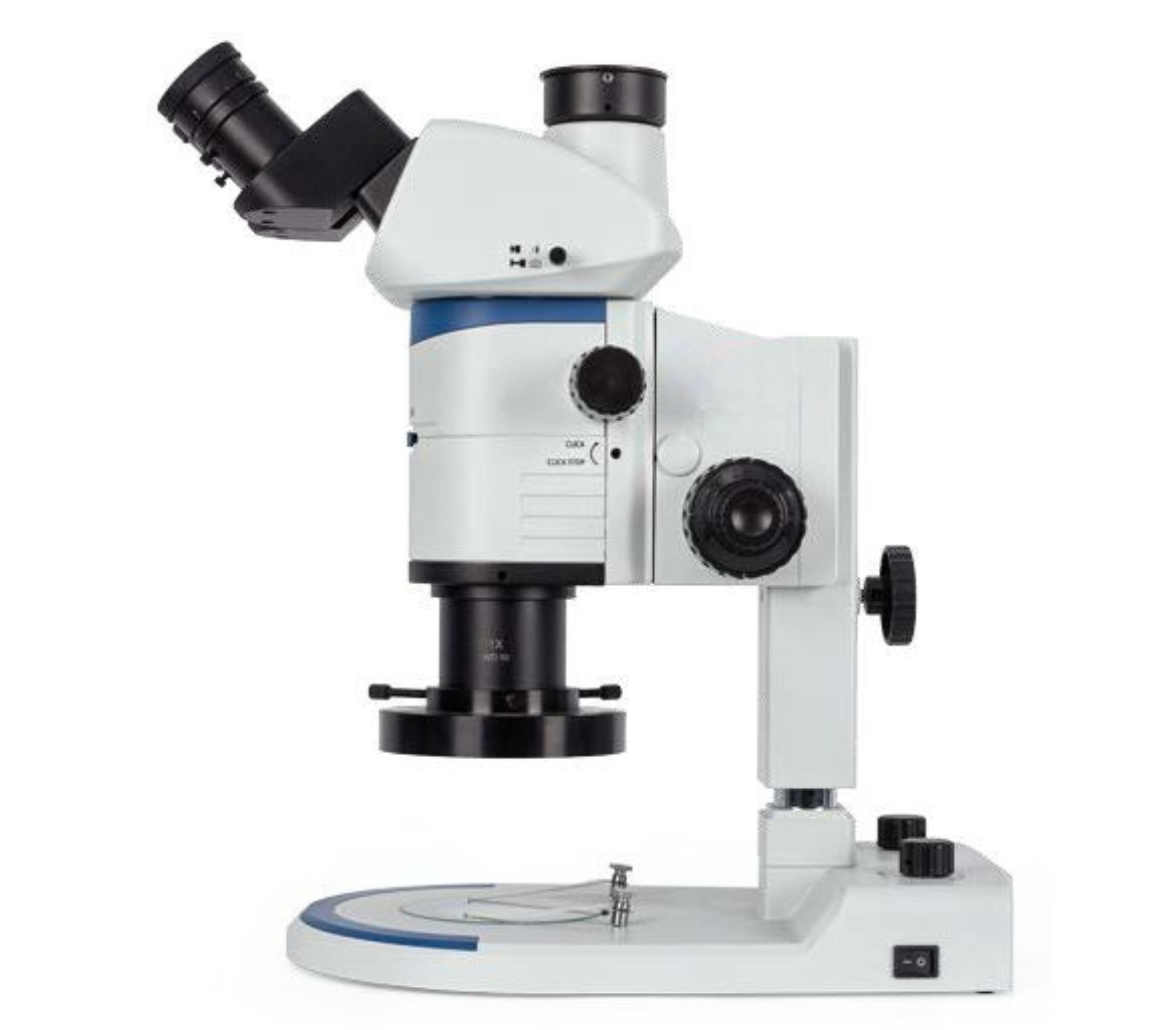

Stereo Promet

The Stereo Promet is a high-performance stereo zoom microscope designed for industrial inspection, biomedical research, and precision microelectronics work. Built on a Galileo optical system with a wide 12.5:1 zoom ratio, it delivers sharp, true-color images with excellent depth of field. Its ergonomic tilting trinocular head ensures comfortable long-duration use, while the coaxial focusing system provides ultra-fine precision for detailed analysis.

Whether you're inspecting circuits, biological samples, or fine components, Stereo Promet offers clarity, control, and confidence.


Key highlights:

  1. Galileo optical system for parallel, distortion-free imaging
  2. 12.5:1 zoom ratio with magnification from 6.3X to 80X

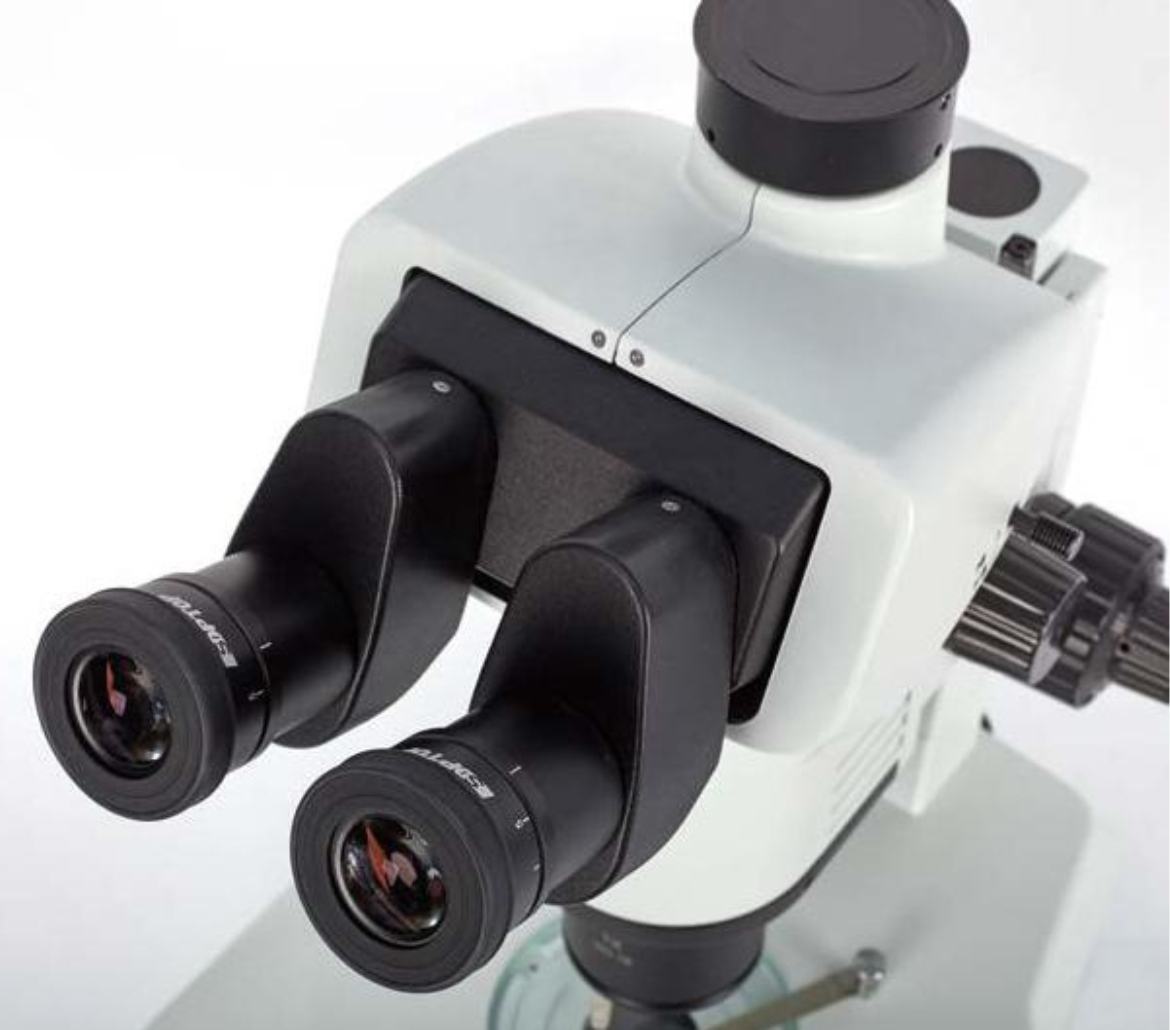

  3. Tilting trinocular head (5°–45°) for ergonomic use
  4. Extra-wide eyepieces (10X/23mm) with optional upgrades
  5. LED illumination with adjustable brightness and color temperature
  6. Coaxial coarse & fine focus with 0.002 mm precision
  7. Apochromatic objectives for superior color accuracy




Zoom Range8x to 80x
EyepieceAdjustable eyepiece for comfortable viewing
IlluminationAdjustable LED illumination for optimal lighting
Optical SystemHigh-definition optics for bright, sharp, high-resolution images
Focus MechanismCoaxial coarse and fine focusing system
Working Distance95mm to 215mm
Field of ViewWide field of view for efficient inspection
Lighting SystemBuilt-in LED with adjustable intensity for both transmitted and reflected light
Power SupplyAC-powered, 100-240V, 50/60Hz
DimensionsCompact, sturdy design for bench-top use
Operating Temperature0°C to 40°C
