Eyepiece Plan eyepiece 10×/18mm
Objective Long work distance plan objective: 10×/0.25, WD7.3mm; 50×/0.70, WD 0.5mm
Total Magnification 100×, 500x
Mechanical tube length 160mm
Focusing range 20mm
Illumination Adjustable LED light(chargeable)
Introduction

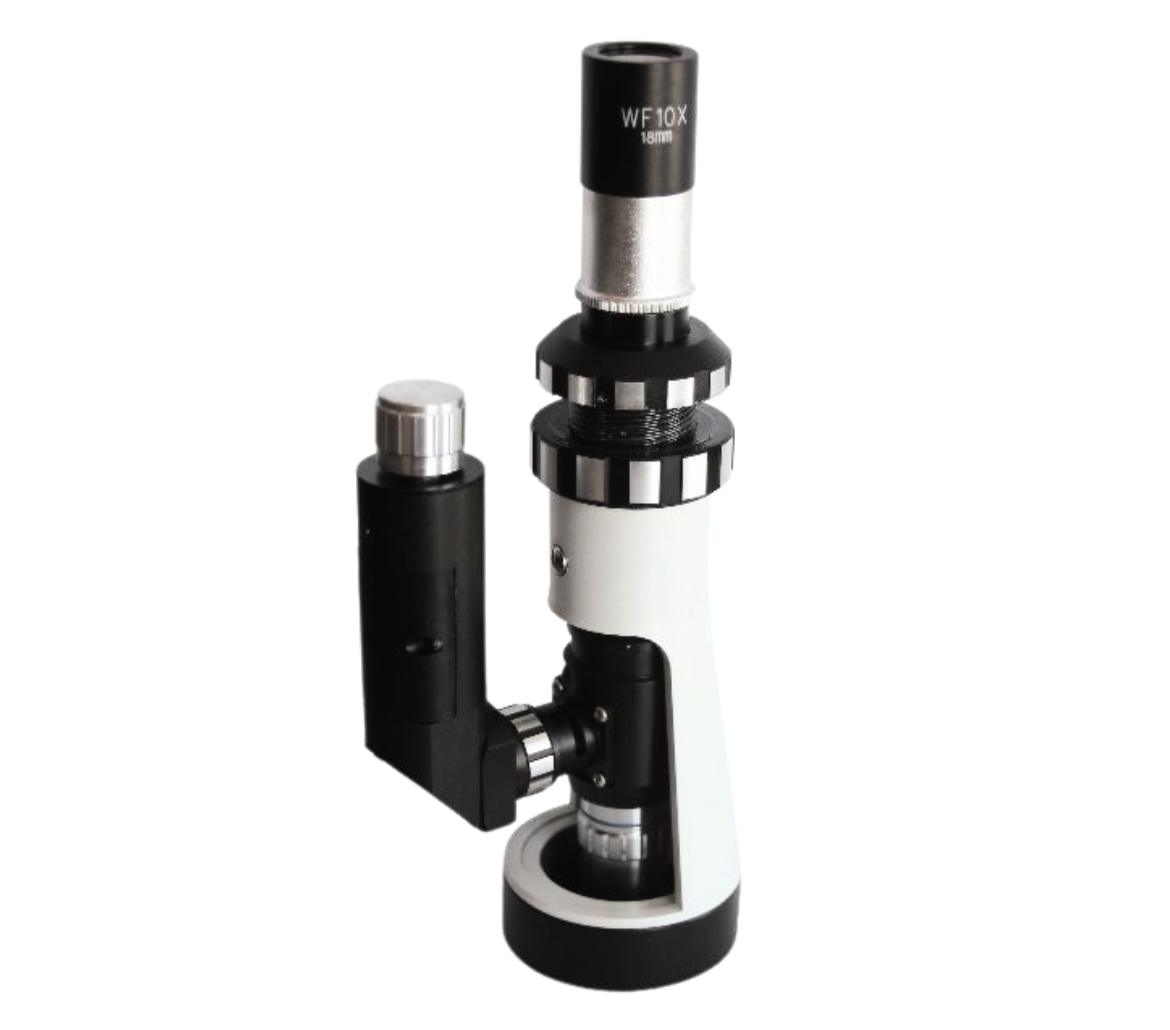

Portmet Portable Metallurgical Microscope is mainly used in field to identify the structures of all kinds of metal and alloy when failure in making sample. It adopts a rechargeable vertical LED illuminator, which provides even and adequate illumination. It can work more than 40 hours after one charge.

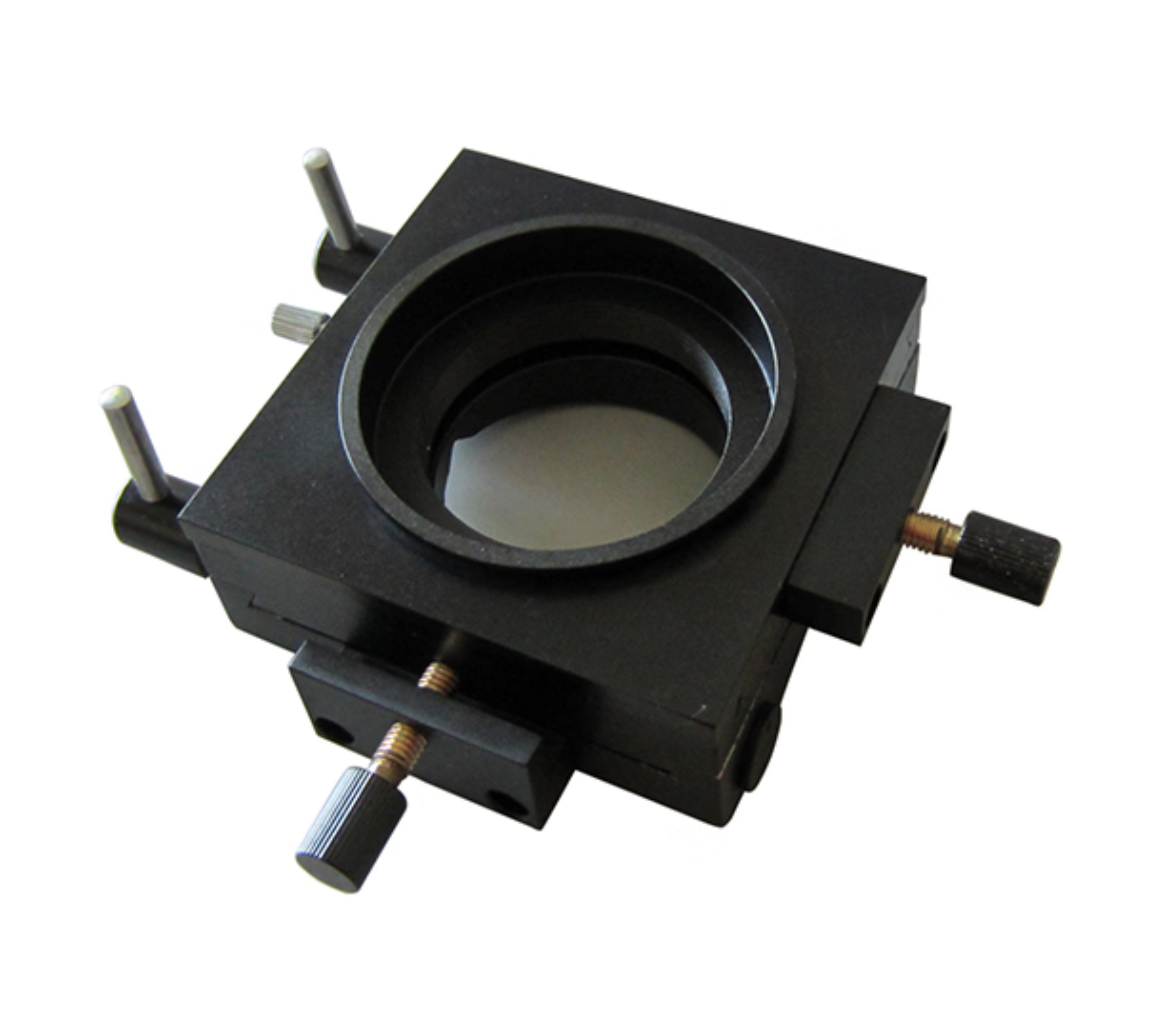

The magnetic base is optional, it can be adsorbed solidly on the work piece, it is adapted to various diameter pipes and flat, the magnetic base can be adjusted from X, Y directions. Digital cameras can be used with the microscope for image, video capture and analysis.
Application
Portmet can be widely used for identification of casting quality, inspection of raw material or metallurgical structures, research and analysis of processed material in factory and laboratory, also can be used in antique gem and surface observation.
| Set of instruments | |
| Model Name | Portmet |
| Microscope Body | 1 set |
| Plan Eyepiece 10×/18mm | 1 unit |
| LWD Plan Metallurgical Objective 10× | 1 unit |
| LWD Plan Metallurgical Objective 50× | 1 unit |
| LED Illumination | 1 set |
| Power Source Battery Charger | 1 unit |
| Magnetic Base (Optional) | 1 unit (optional) |
| Model Name | Portmet |
| Total Magnification | 100X, 500X |
| Eyepiece | Plan eyepiece 10X/18 mm |
| Optional Eyepieces | WF16X, WF20X, WF10X/18 with crossline |
| Objectives | LWD Plan Objectives: 10X/0.25 (WD 7.3 mm), 50X/0.70 (WD 0.5 mm) |
| Optional Objectives | 5X, 20X, 40X LWD Plan Objectives |
| Illumination | Adjustable rechargeable LED light |
| Focusing Range | 20 mm |
| Mechanical Tube Length | 160 mm |
| Dimensions | 23 cm × 11 cm × 7 cm |
| Weight | 0.75 kg |
| Magnetic Base | Optional, with X-Y movement on flat/curved surfaces |
| Camera Compatibility | Supports digital camera for image/video capture |
| Applications | Metal/alloy structure inspection, casting quality, surface study, antiques, and gemstones |
