Stereo Optimet

    Stereo System: Positive image optical system stereo optimet with zoom ratio 10:1, provide comfortable operation and superior image, relieve the fatigue of long-time observation.

    Light source: LED illumination with the characteristics of safe, green, less heat and long lifetime, is highly efficient and economic, is able to restore the natural color of samples.

    Applications: Different applications, such as biomedical, microelectronics and semiconductor inspection, are available.

Download PDF

Stereo Optimet

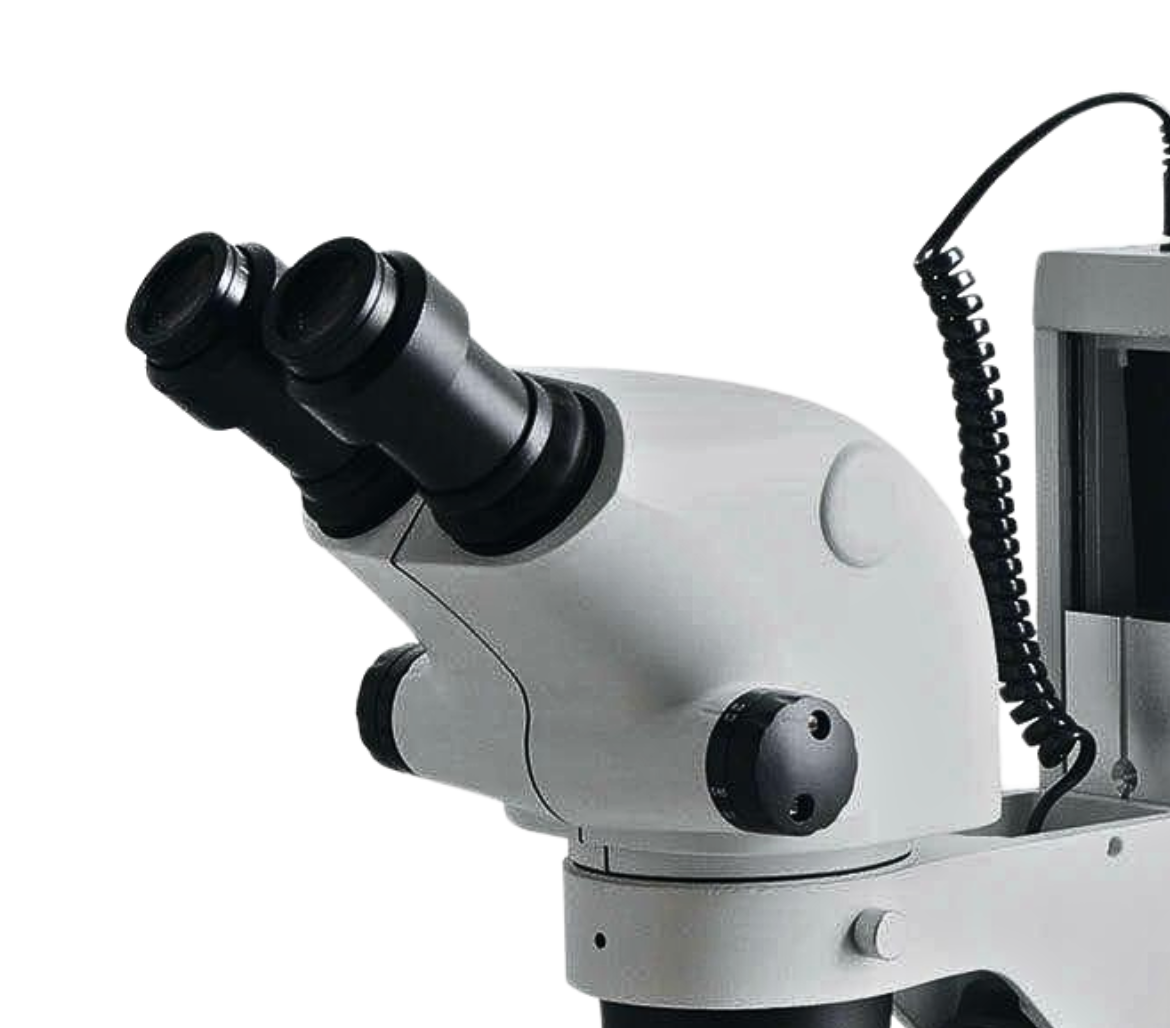

Stereo Optimet is a high-performance zoom stereo microscope with a 10:1 zoom ratio, bright safe LED illumination, and high eye-point wide field eyepieces. It is ideal for biomedical research, microelectronics, and semiconductor inspection, providing natural color restoration, comfortable operation, and reduced user fatigue during extended work sessions.

Key Highlights:

  1. Zoom Objective System: 0.65X ~ 6.5X; total magnification 6.5X to 65X with standard 10X eyepiece.
  2. Wide Field Eyepieces: PL10X/22 mm standard; optional PL15X/15 mm, PL20X/12 mm, WF-25X/9 mm.
  3. Flexible Illumination: 3W high-brightness LED for both reflected and transmitted light.
  4. Comfortable Working Distance: 110 mm standard; vertical effective movement 220 mm.
  5. Stable Frame & Base: Integrated coaxial fine and coarse focusing with cylindrical roller guide; precision 0.002 mm; base size 320 mm × 260 mm × 274 mm.

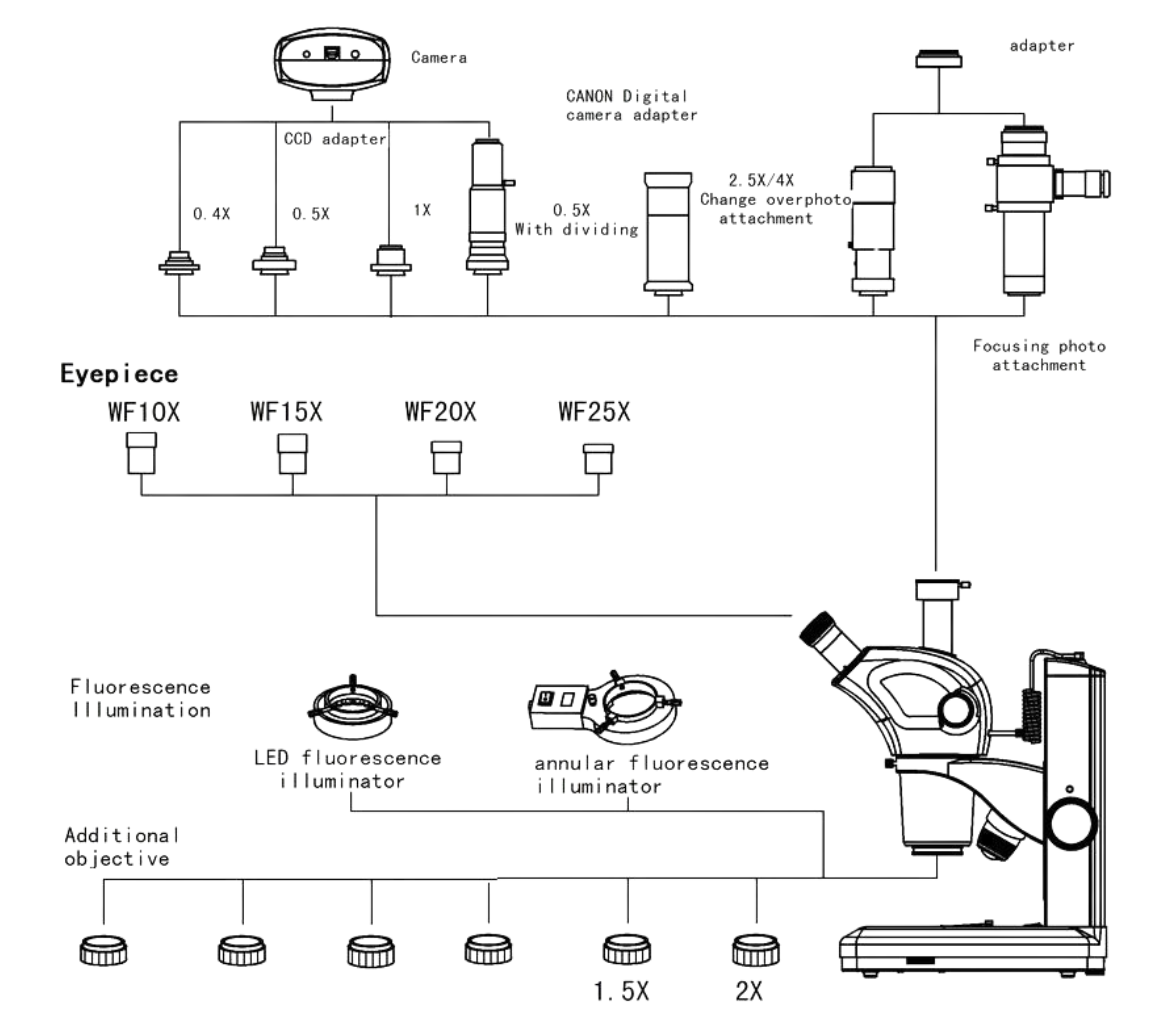

  6. Optional Optics & Camera Adapter: Auxiliary objectives (0.3X / 0.5X / 0.7X / 1.5X / 2.0X) and C-mount adapters 0.35X, 0.5X, 1X.




Viewing Head45-degree inclined, splitting ratio binocular = 50:50, inter-pupillary distance: 54-76mm.
EyepiecesHigh eyepoint wide field plan eyepiece PL10X/22mm, diopter adjustable (Standard).

High eyepoint wide field plan eyepiece PL15X/15mm, diopter adjustable (Optional).

High eye-point wide field plan eyepiece PL20X/12mm, diopter adjustable (Optional).
ObjectivesZoom objective system: 0.65X ~ 6.5X, Zoom ratio 10:1, 6.5x to 65x with standard 10x eyepiece.
FrameCoaxial fine and coarse focusing mechanism, integrated cylindrical roller guide, focusing range 50mm, fine precision 0.002mm.
BaseBase size: 320mm (W) x 260mm (D) x 274mm (H), diameter 100, clear glass and black & white plates, specimen holding clips.
Working Distance110mm standard, vertical effective movement: 220mm.
IlluminationReflected illuminating: 3W high brightness LED. Transmitted illuminating: 3W high brightness LED.
Field RangeØ 33.8 ~ Ø 3.49
Additional OpticsAuxiliary objectives: 0.3x / 0.5x / 0.7x / 1.5x / 2.0x (Optional). High eye-point wide field eyepiece WF-25x / 9mm (Optional).
Camera Adapter0.5X/0.35X/1X C-mount adapter, focus adjustable.
