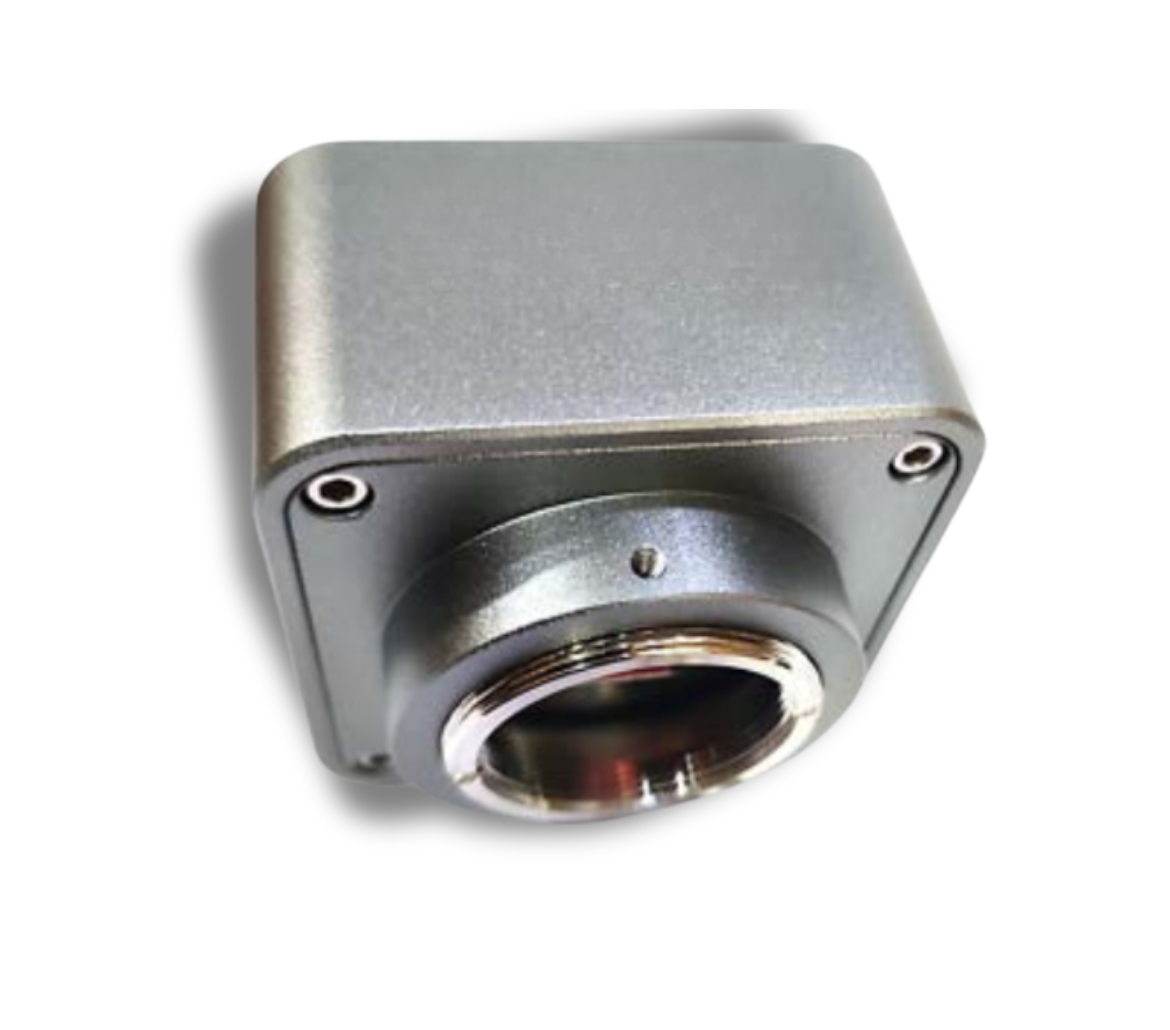

DIGICAM 5MP (Plug & Play )

DIGICAM 5MP (Plug & Play) is a high-performance digital microscope camera designed for easy image capture, precise documentation, and real-time observation in quality control, material inspection, and biomedical research.

Equipped with a 5 Mega Pixel MT9P031 CMOS image sensor, it delivers sharp, clear images up to 2592×1944 resolution, with smooth progressive scanning and a high 43 dB S/N ratio for noise-free output.

Its simple USB 2.0 interface means true plug-and-play operation — no extra drivers or external power supply hassles.

DIGICAM 5MP supports manual and one-touch auto white balance and exposure control, making it easy to capture accurate, true-color images every time.

Paired with Caliper-Pro or Capture-Pro software, it’s an ideal tool for measurement, archiving, and sharing results instantly.

Key Highlights:

1. 5MP CMOS Sensor: MICRON MT9P031 with 2.2 µm pixel size for high-detail capture.
2. Flexible Resolution & Frame Rate: 8 fps at full 2592×1944, up to 30 fps at 640×480 for smooth live viewing.
3. Progressive Scanning: Delivers sharp images without interlacing artifacts.
4. Easy Plug & Play: USB 2.0 high-speed data transfer at 480 Mbit/sec.
5. Wide Sensitivity: 1.0 V/lux-sec sensitivity at 550nm for superior low-light performance.
6. Compact & Efficient: Low power consumption — only DC 5V ~200 mA via USB.
