Stereo Nexgen

    Trinocular Observation Head: Galileo optical system left & right parallel optical path. Observation head inclined from 35°. Vertical phototube for micro photography. Diopter adjustment ring on ocular tube. Inter-pupillary distance from 54mm to 76mm.

    Eyepiece: Wide field 10X (paired) F.O.V. 22mm

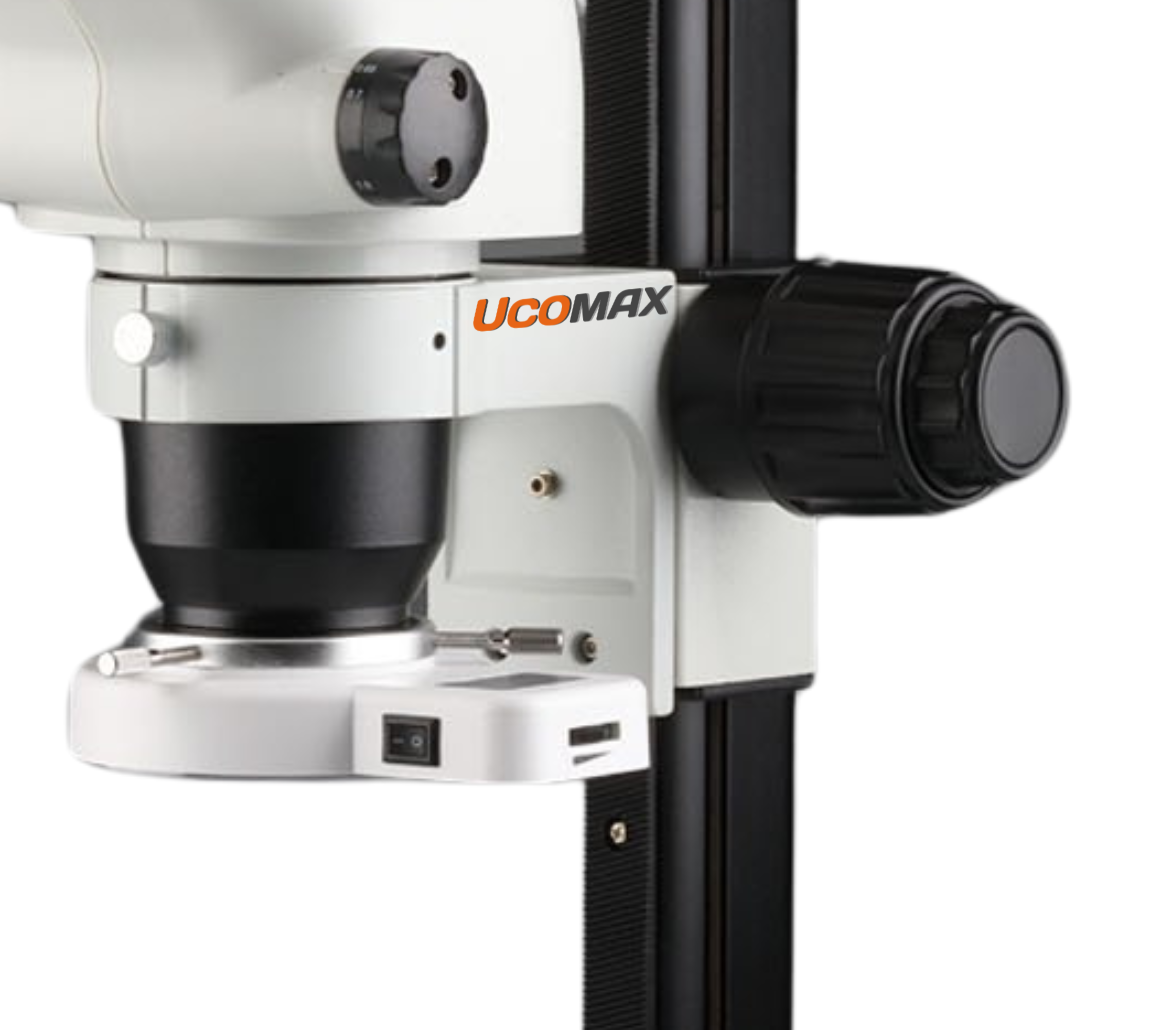

    Mechanical Body: Track stand with coarse and fine focusing movement Base Size is 320mm X 305 X 16mm Incident light system with LED lamp. The system regulated with transformer has intensity control knob. Clip for holding specimen. Lateral zoom control movement.

    Working distance: 110 mm


Download PDF

Stereo Nexgen

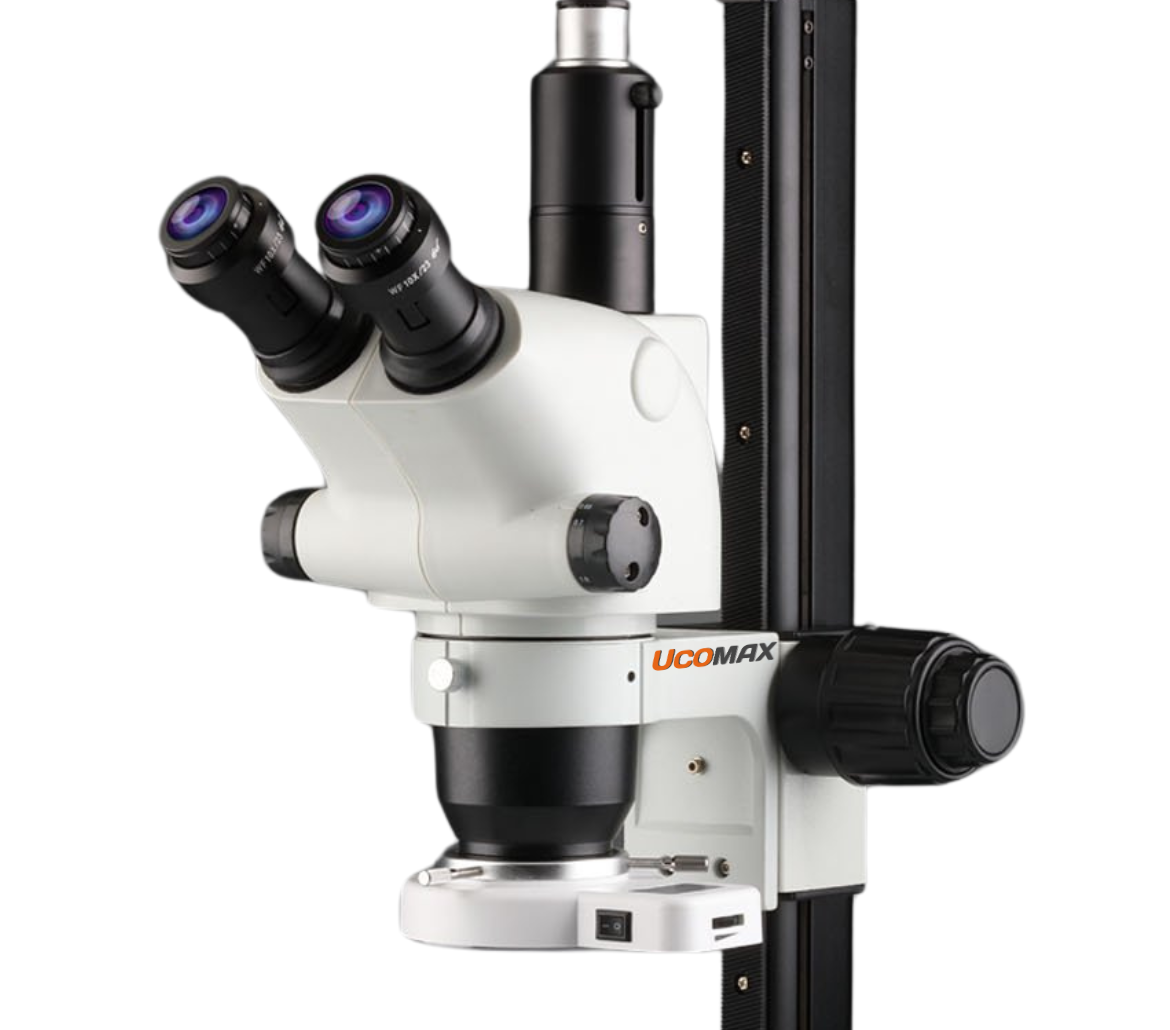

Stereo Nexgen is a professional-grade stereo microscope for precision tasks in advanced research, semiconductor inspection, and fine electronics work.

Its Galileo optical system ensures sharp, parallel optical paths for high-fidelity stereo images. An ergonomic observation head and flexible stand design make it a powerful tool for clear, fatigue-free viewing during extended sessions.

Key Highlights:

  1. Galileo Parallel Optical Path: Delivers clear, distortion-free stereo images.
  2. Trinocular Head: Inclined from 35°, vertical phototube, interpupillary distance 54–76 mm.
  3. Wide Field Eyepieces: 10X/22 mm standard.
  4. Large Zoom Range: 0.65X–6.5X with 1:10 zoom ratio for smooth magnification control.
  5. Coarse & Fine Focusing: Integrated track stand with smooth lateral zoom movement; precision 0.002 mm.
  6. Efficient LED Illumination: Incident light with transformer and intensity control.
  7. Comfortable Working Distance: 110 mm for larger samples.


Observation HeadGalileo optical system with left & right parallel optical path; trinocular head inclined from 35°;

vertical phototube; diopter adjustment; interpupillary distance 54–76 mm
EyepiecesWide field 10X/22 mm (paired)
Zooming Range & Ratio0.65X–6.5X zoom range, magnification ratio 1:10
Magnification Range0.65X–6.5X
Working Distance110 mm
Mechanical BodyTrack stand with coarse & fine focusing; base size 320 mm × 305 mm × 16 mm;

incident LED light with transformer & intensity knob; specimen holding clip
Standard AccessoriesOperating manual, dust cover, guarantee card, styrofoam molded pack
Optional AccessoriesAuxiliary lens: 0.5X, 2X; eyepiece: 20X/12 mm
