High-Resolution Imaging: With an effective resolution of 2592H x 1944V, the camera provides high-quality, sharp images suitable for a variety of professional applications.
Electronic Rolling Shutter: Features an electronic rolling shutter that ensures minimal motion distortion, making it ideal for dynamic scenes.
Versatile Video Capture: Supports multiple frame rates, including 30fps at 1280x720 and 15fps at 1920x1080, offering flexibility in video recording for various needs.
Wide Dynamic Range: A dynamic range of 66.5dB ensures excellent performance in a variety of lighting conditions, capturing both bright highlights and dark shadows with clarity.

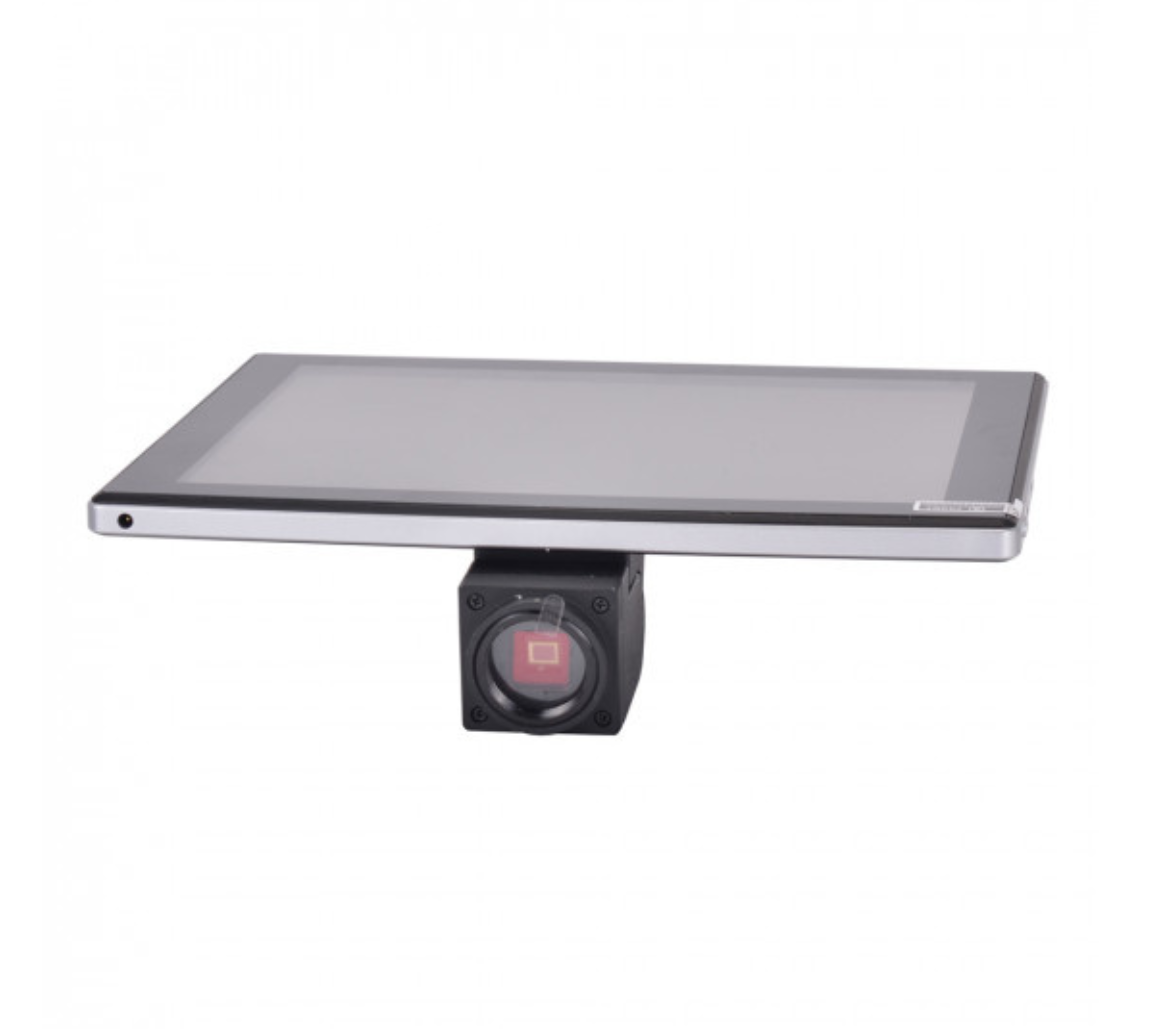

DIGICAM Tablet (Android & Windows) is a smart digital microscope camera system combining a 5MP color CMOS camera with a portable 9.7-inch tablet, developed specifically for modern microscopy applications.
It integrates professional imaging software for multi-function measurement and particle analysis, making it an all-in-one, plug-and-play solution for labs, education, and on-site inspection.
The system supports snapshots, video recording, measurement, and offers optional HDMI output, SD card storage, and simple wireless connectivity for easy data handling.
Key Highlights:
5MP Color CMOS Camera โ high-quality Aptina MT9P001 sensor with 1/2.5" size.
Effective Resolution โ up to 2592 ร 1944, with electronic rolling shutter.
Real-Time Video โ 1280 ร 720 @ 30 fps, 1920 ร1080 @ 15 fps.
Professional Software โ built-in measurement and particle analysis tools.
Optional HDMI Output โ supports additional display output if needed.
Portable Tablet โ 10.1-inch HD display with MediaTek processor, Android OS, Wi-Fi & Cellular ready.
SD Card Support โ for storing images, videos, and measurement data.
Lightweight & Compact โ easy to carry; total weight approx. 1.1 kg
| Camera Sensor | Aptina MT9P001 |
| Scanning Mode | Line |
| Sensor Size | 1/2.5" (4:3) |
| Effective Resolution | 2592H ร 1944V |
| Pixel Size | 2.2 ยตm ร 2.2 ยตm |
| Dynamic Range | 66.5 dB |
| S/N Ratio | 40.5 dB |
| A/D Bits | 12-bit, on-chip |
| Sensitivity | 0.53 V/lux-sec (550 nm) |
| Video & Frame Rate | 640 ร 480 @ 30 fps, 1280 ร 720 @ 15 fps |
| Exposure | Auto Exposure |
| Shutter Type | Electronic Rolling Shutter |
| Software Function | Snap, Video, Measurement, Particle Analysis |
| Optional Output | HDMI |
| SD Card | Supported |
| Power Supply | DC 5V 2A |
| Tablet Display Size | 10.1 Inches |
| Tablet Screen Resolution | 1920 ร 1080 pixels (FULLHD) |
| Processor | MediaTek |
| RAM Size | 8 GB |
| Memory Technology | DRAM |
| Connectivity | Cellular, Wi-Fi (802.11g) |
| Operating System | Android |
| Battery | 1 Lithium Polymer Battery (Included), 4.9 Watt Hours |
| Package Dimensions | 26.5 ร 18.8 ร 4 cm |
| Tablet Weight | 740 g |
| Gross Weight | 1.1 kg |
