Trinocular Head: Siedentopf observation head inclined at 45° with a vertical phototube for micro photography.
Mechanical Body: Co-axial focusing system with large knobs, pre-focusing lever, tension adjustment ring, quintuple nosepiece on ball bearing. Light path selector directs full light to the observation head or 80% to the vertical phototube.
Eyepieces: Wide-field 10X eyepiece (paired) with a 22mm field of view.
BD Long Working Distance Plan objectives: 5X, 10X, 20X, 50X, 100X (DRY, optional). Quintuple nosepiece on ball bearings for smooth objective switching.

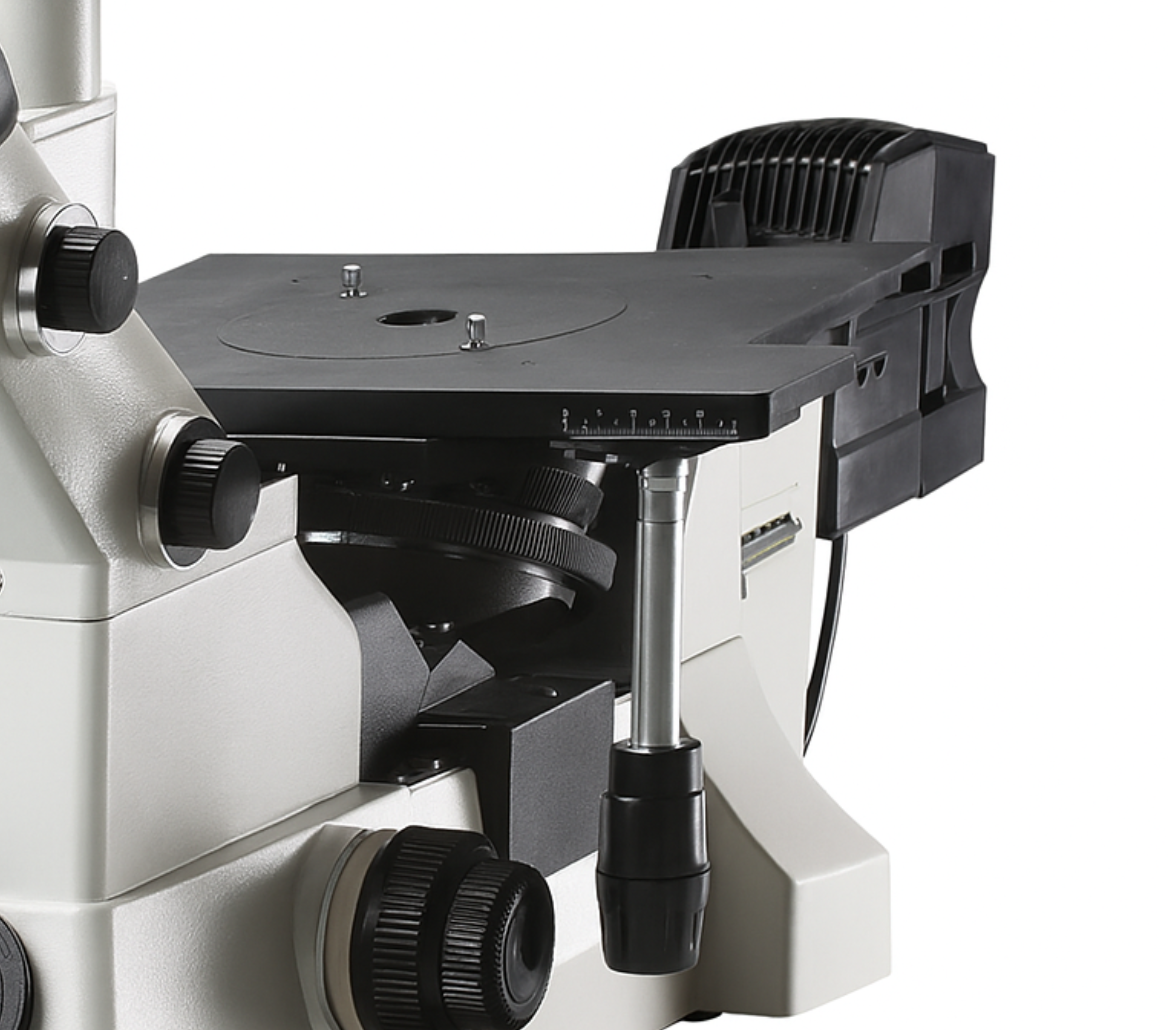

Mechanical stage size: 225mm x 180mm with a control box and 40mm x 40mm travel distance.
Metscope Vista is a professional inverted metallurgical microscope designed for precise dark and bright field analysis of materials. It combines a robust optical system, flexible observation modes, and practical ergonomics — making it ideal for metallurgy labs, industrial QC, and research.
Key Highlights:
| Observation Head | Siedentopf trinocular head inclined at 45°,diopter adjustment ring (±5), vertical phototube for micro photography |
| Light path selector for directing light fully to the observation head or 80% to phototube, 20% to observation tube | |
| Eyepieces | Wide field eyepiece 10X (paired), F.O.V. 22 mm, anti-fungal treated |
| Objectives | BD Long Working Distance Plan Objectives (Infinity Corrected) for Dark/Bright Field: 5X, 10X, 20X, 50X, 100X (Dry, optional) |
| Mechanical Body | Co-axial focusing system with large knobs, pre-focusing lever, tension adjustment ring, quintuple nosepiece on ball bearing |
| Stage | Stage size 225 mm × 180 mm with control box, travel distance 40 mm × 40 mm |
| Illuminator System | Epi illuminator with 12V–50W halogen lamp, variable brightness control |
| Polarizing Outfit | Analyzer rotatable at 360°, polarizer and analyzer can be slid in/out of the optical path |
| Standard Accessories | 12V/50W halogen tungsten bulb, blue, green, and yellow filters, operating manual, dust cover, guarantee card, styrofoam molded pack |
| Optional Accessories | DIC filter for 5X, 10X, 20X, 50X, 100X |
