Stable & Accurate Motion System: High-precision linear guide rails ensure smooth travel along the X, Y, and Z axis.
High-Precision Marble Platform: The entire machine adopts a solid marble structure for excellent dimensional stability, resistance to deformation, and superior wear and corrosion resistance.

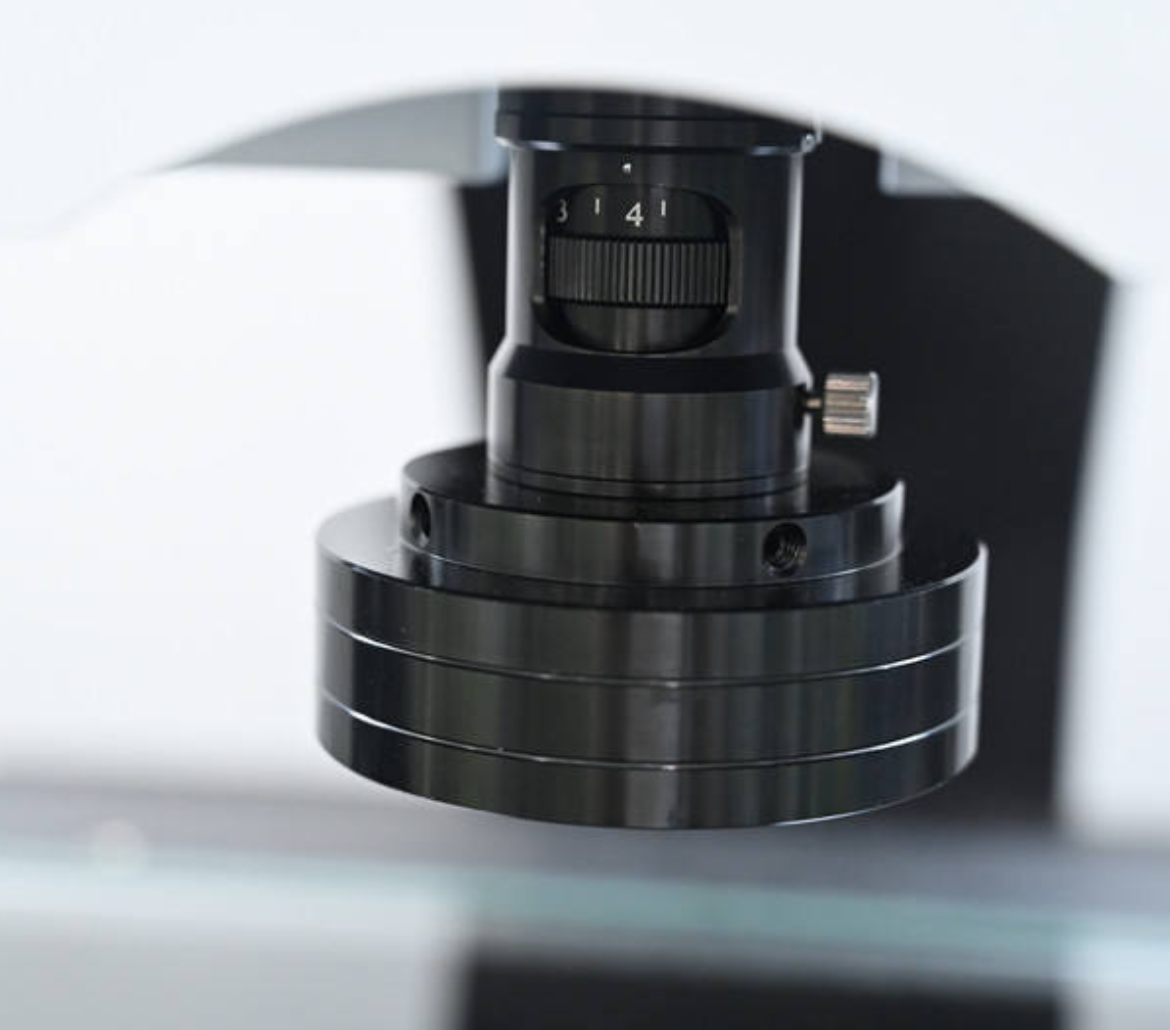

High-Precision Zoom Slot Lens: Delivers clear, detailed images with adjustable magnification from 0.7ร to 4.5ร. Multiple magnification slots eliminate the need for repeated calibration.
Optional Contact Probe: Equipped with an optional Renishaw high-precision contact probe to measure 2D and 3D features including height, plane, cylinder, cone, ball, and ring.

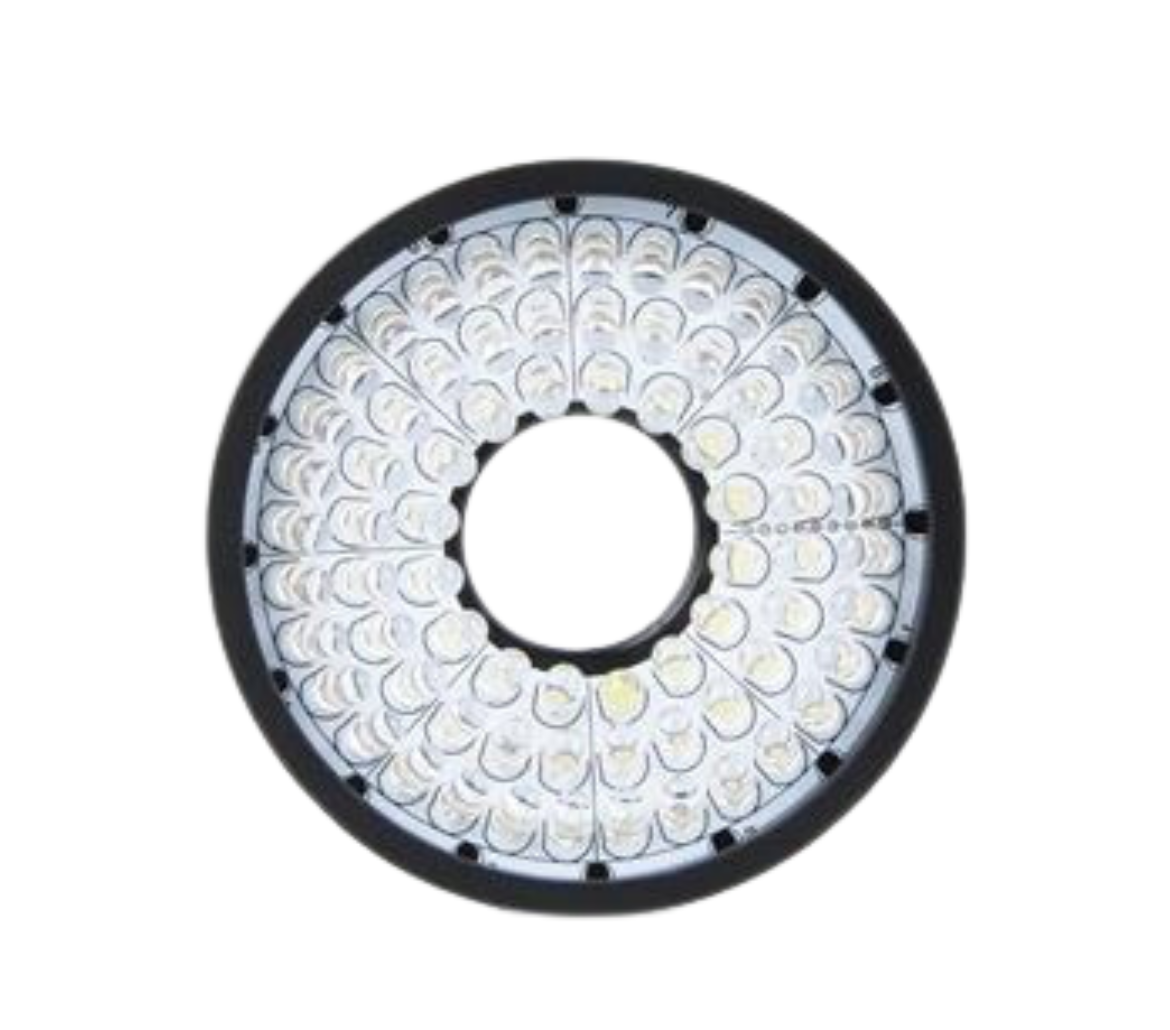

LED Ring Light Source: Cold LED light with programmable partitioning for optimal illumination. No manual adjustment required. Coaxial light source is available as an option.

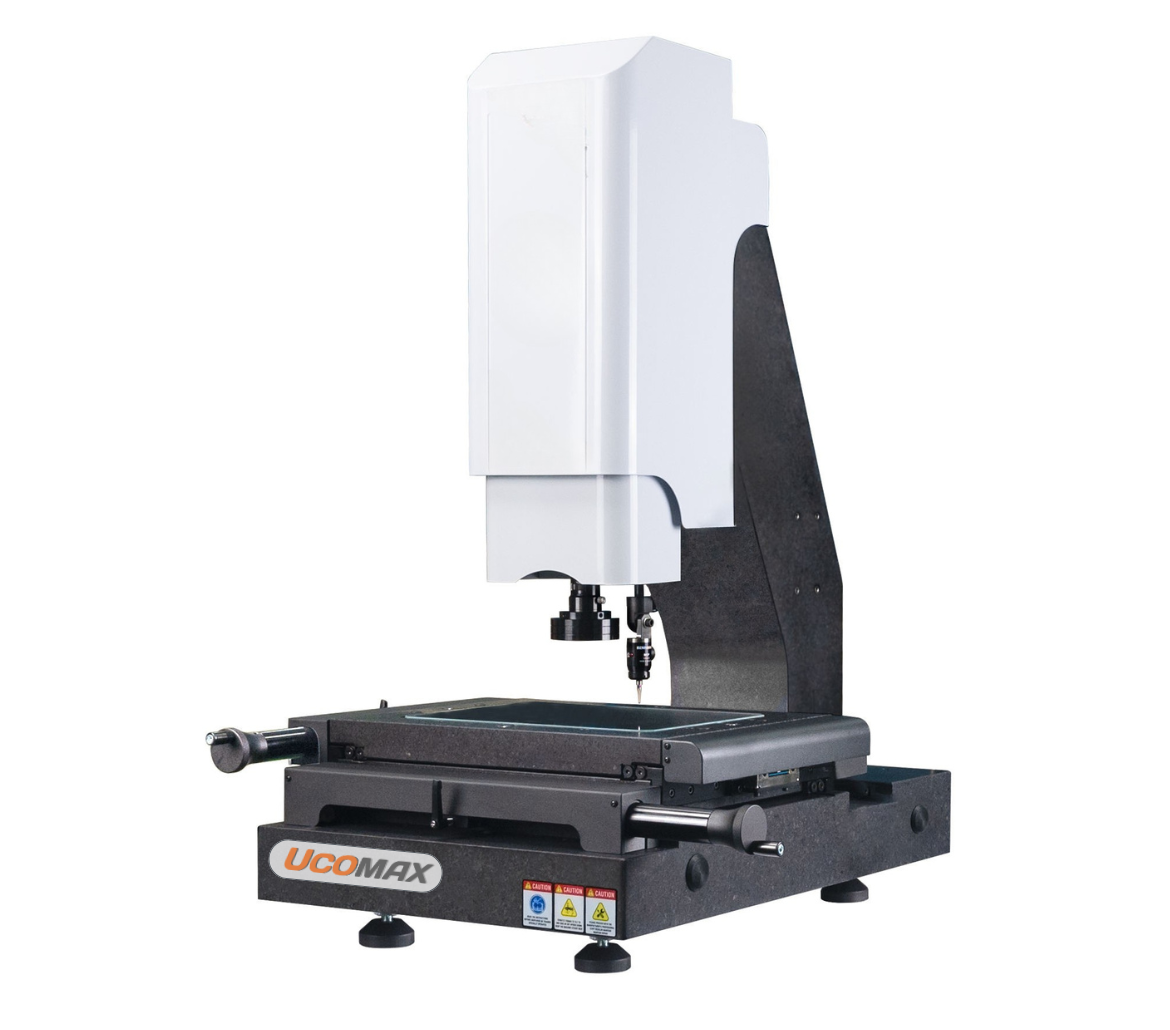

The VisionEdge Ultra by UCOMAX combines advanced non-contact optical measurement with robust structural design to deliver repeatable, high-accuracy results for demanding industries. From electronics and precision molds to small mechanical parts, this system ensures reliable quality control with minimal operator effort. Built on a durable marble platform with a high-resolution imaging system and flexible magnification, itโs the trusted solution for your precision inspection needs.
Key Highlights:
| Platform size (mm) | 360ร260 to 720x620 |
| Glass table size (mm) | 250ร150 to 550x450 |
| Load-bearing weight (kg) | 20 |
| X axis (mm) | 200 to 500 |
| Y axis (mm) | 100 to 400 |
| Z axis (mm) | 200 |
| Display resolution (ฮผm) | 1 / 0.5 (Optional) |
| Instrument precision (ฮผm) | (3 + L/200) ฮผm |
| Imaging system (CCD) | High Resolution Digital Color Camera |
| Zoom objective (X) | High Precision Optical Zoom Objective 0.7~4.5X |
| Total video magnification (X) | 30โ200X |
| Working distance (mm) | 96 |
| Light source | LED Programmable Partition Light Source (Coaxial light source optional) |
| Size (mm) | 610 ร 550 ร 970 |
| Weight (kg) | 250 |
| Power supply | 220V AC 50Hz |
