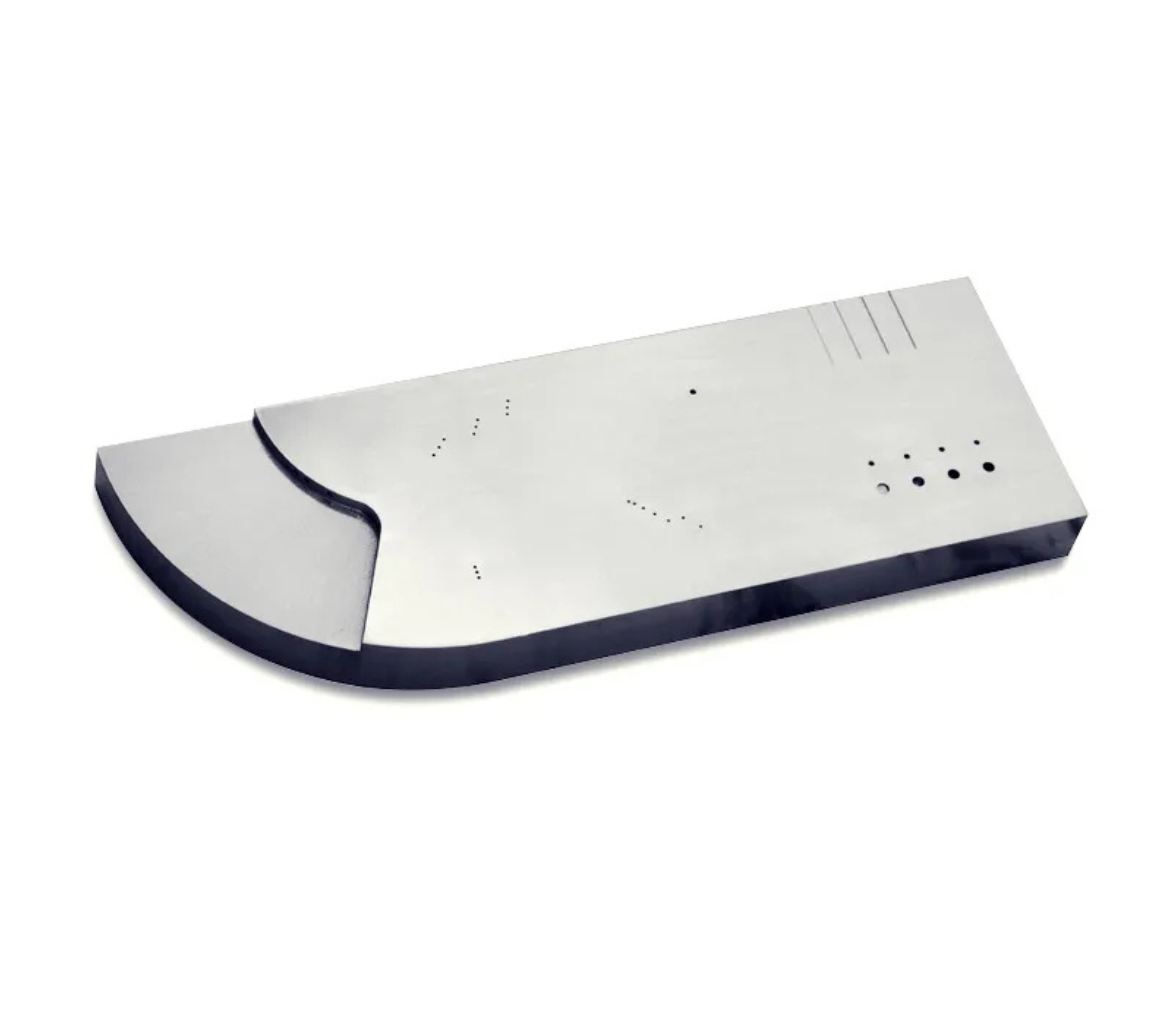

Phased Array Calibration Block A

The Phased Array Calibration Block A is a versatile reference standard specifically designed for the setup and calibration of phased array ultrasonic flaw detectors. While similar in size to a traditional IIW-Type Block, this block is specially engineered to meet the complex requirements of phased array applications. Use it to perform beam angle verification, wedge delay calibration, sensitivity checks, DAC/TCG calibration, and more — ensuring your phased array system operates with maximum accuracy.




Purpose-Built: Optimized for phased array flaw detector setup and calibration.

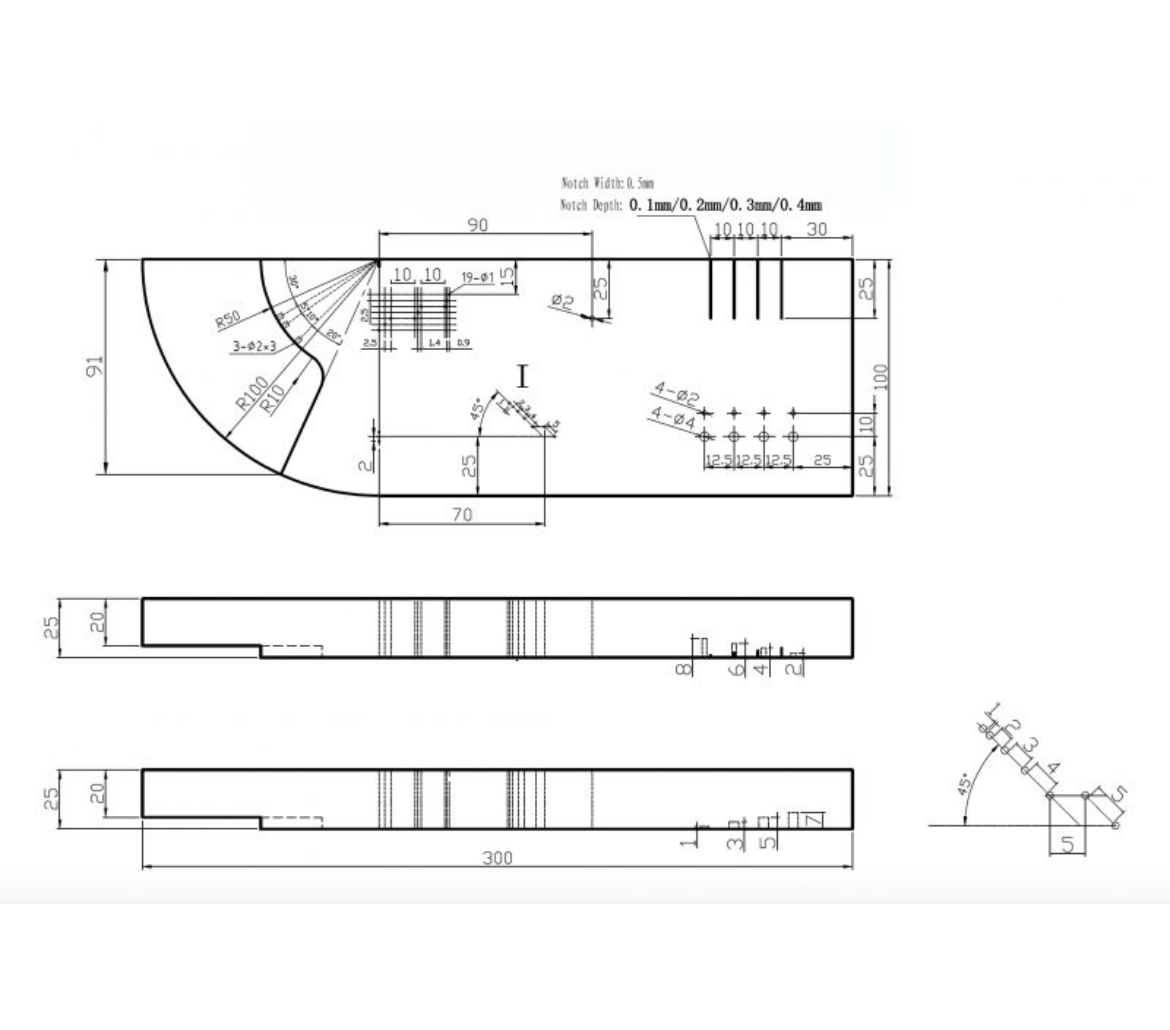

Multiple Features: Seven through-holes, twenty-four FBH, and four notches for full calibration coverage.

Practical Design: Similar dimensions to an IIW-Type Block with a sturdy protective case included.
