Image Sensor CMOS, Color
Chip Size 1/2.8" ( 5.38mm x 3.02mm ) FULL HD CMOS
Resolution 2592 x 1944 ( 8 Bits at 5.5 MP)
Pixel Size 2.8 microns X 2.8 microns

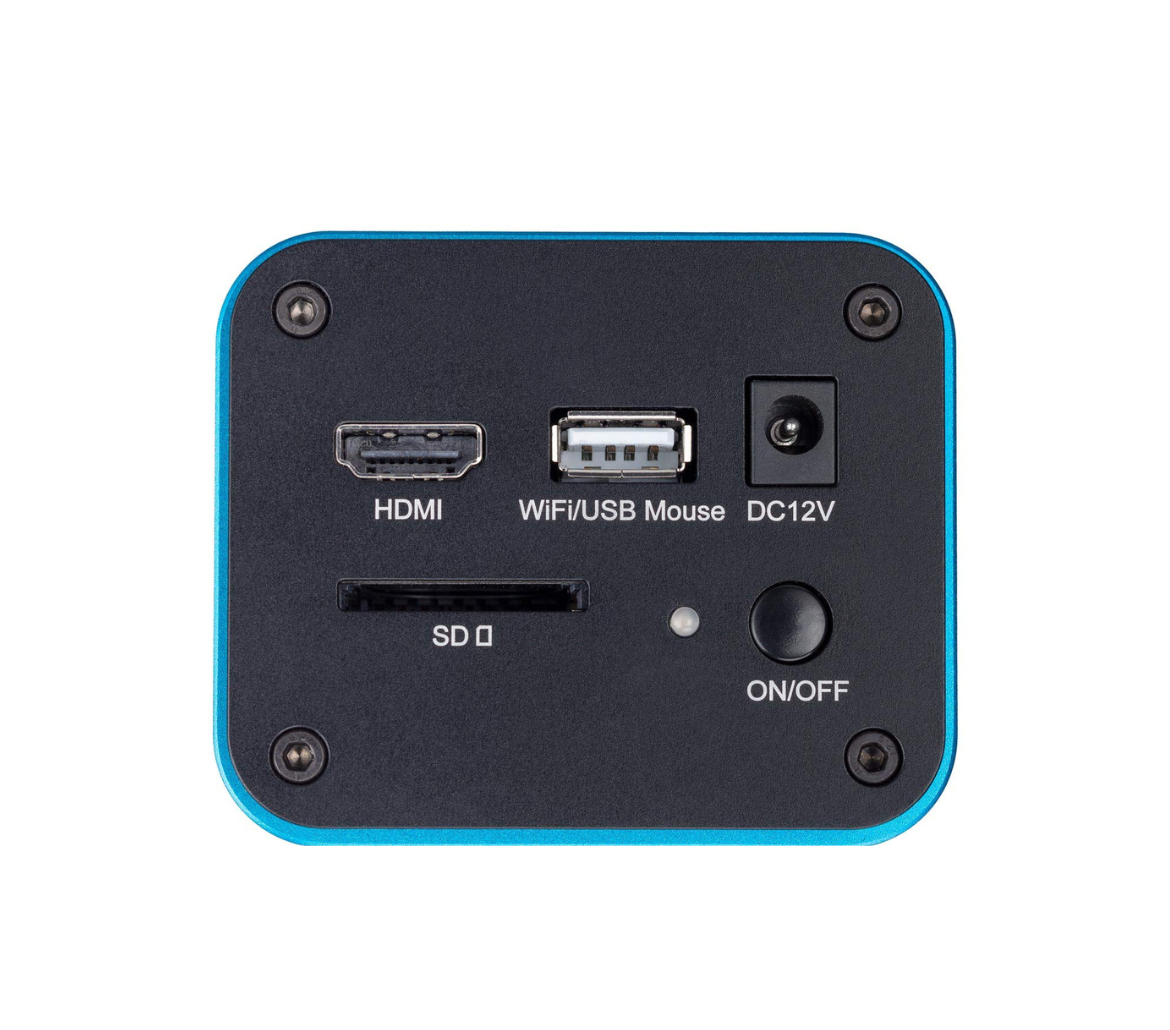

Output HDMI, USB, SD Card

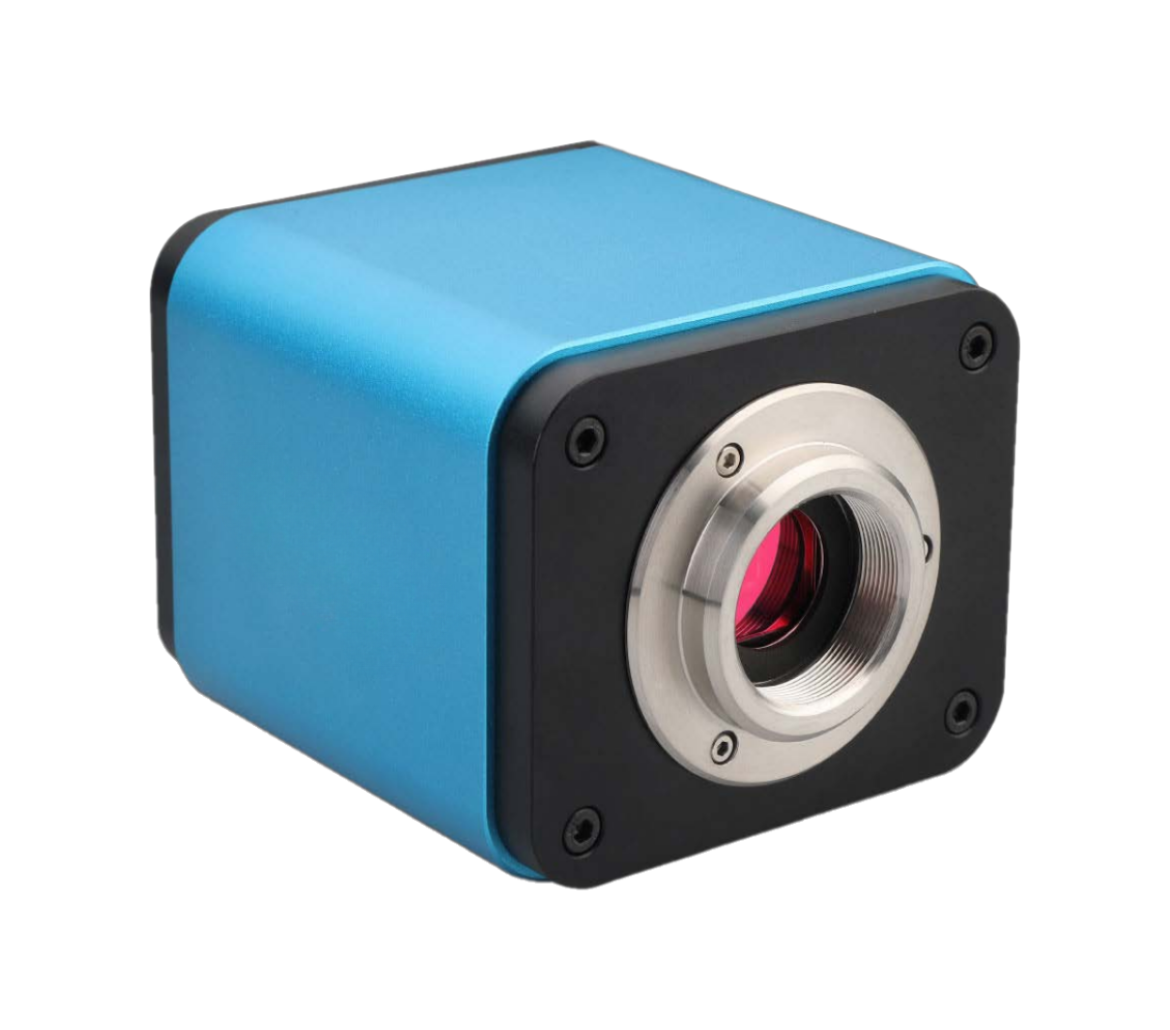

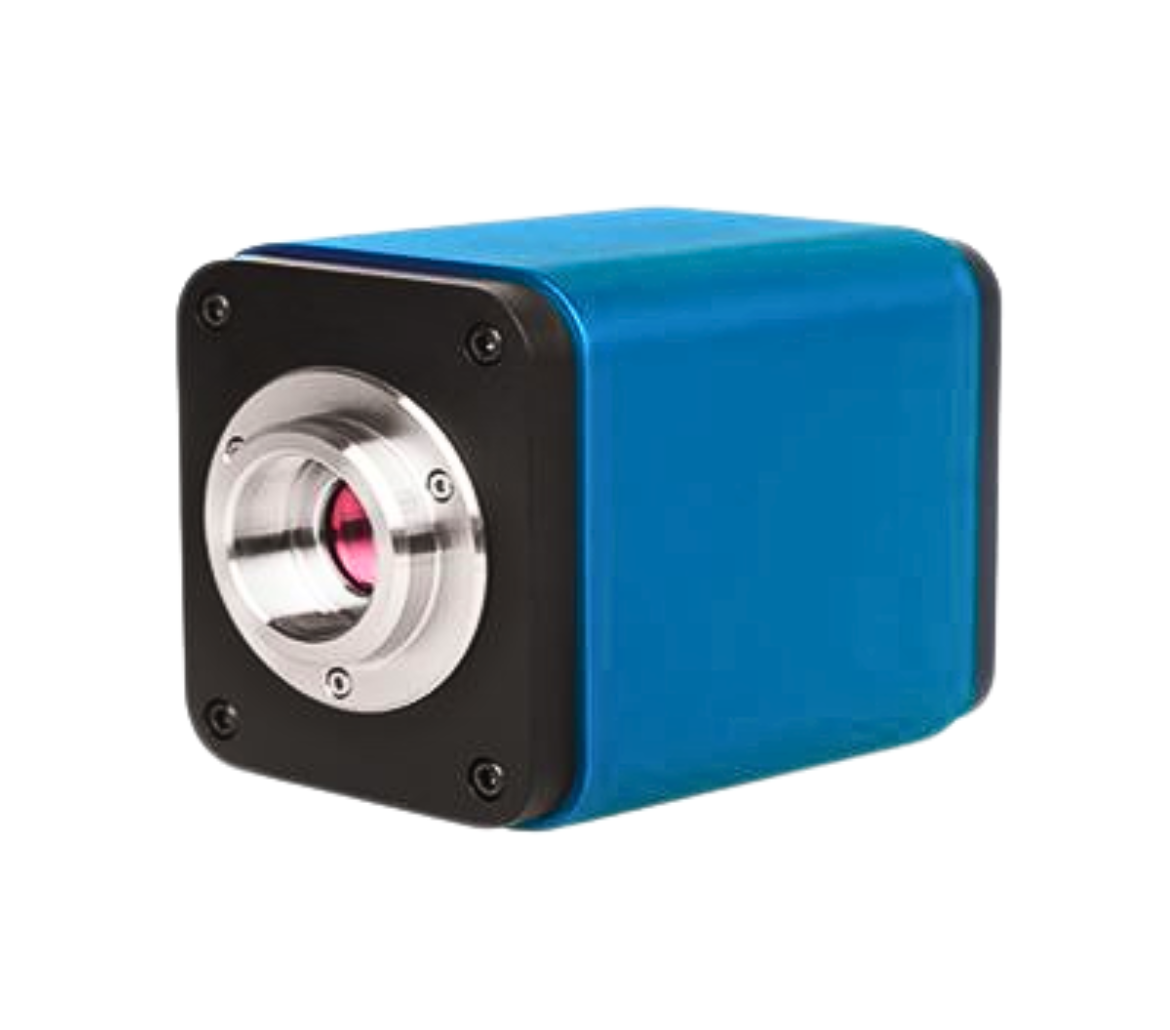

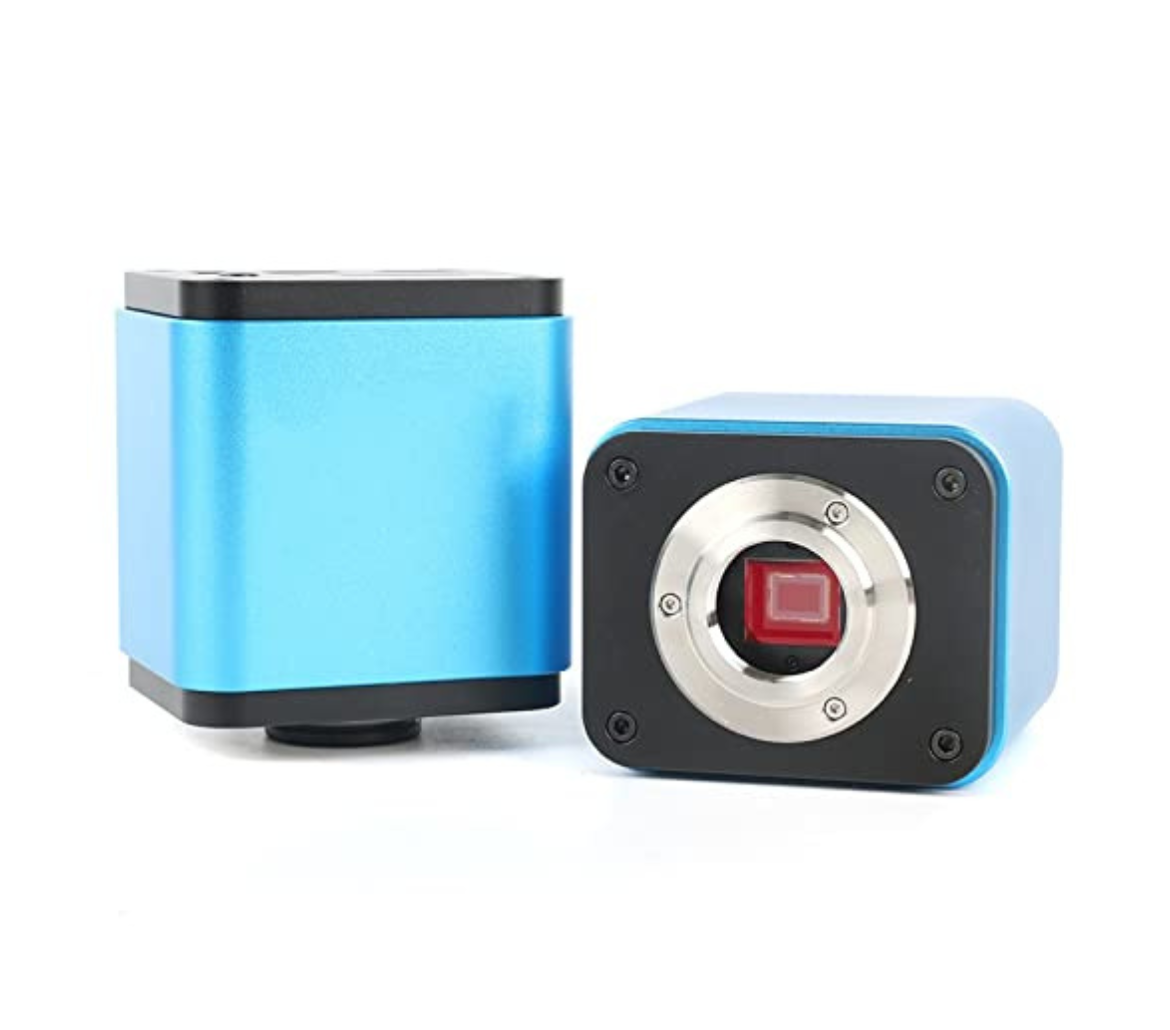

The DIGICAM 5MP is a versatile microscope camera designed for clear, high-quality imaging and fast processing. Use it directly with an HDMI screen โ no PC required โ or connect via USB 3.0 for convenient image capture and transfer.
Key Highlights:
| Image Sensor | CMOS, Color |
| Chip Size | 1/2.8" (5.38 mm ร 3.02 mm) FULL HD CMOS |
| Resolution | 2592 ร 1944 (8 Bits at 5.5 MP) |
| Pixel Size | 2.8 ยตm ร 2.8 ยตm |
| Output | HDMI, USB, SD Card |
| Framerate | 60 fps at 1080P (HDMI) / 15 fps at 2592ร1944 (PC) |
| Memory Card | Supports TF Card (Max 32 GB) |
| Snap Format | JPG |
| Video Format | AVI |
| Exposure | Auto / Manual |
| White Balance | Auto / Manual |
| Cross Line | Horizontal 4 Lines, Vertical 4 Lines |
| Freeze / Unfreeze | Supported |
| Camera Mount | C or CS Mount (Reduction Lens 0.37ร, 0.5ร, 0.7ร, 1ร) |
| Power Supply | DC 12V |
| Light Frequency | 50 Hz or 60 Hz |
| Quantum Efficiency | 65% |
| Working Temperature | 0โ50 ยฐC |
| Camera Size | 78 ร 70 ร 92 mm |
| Weight | 200 g |
